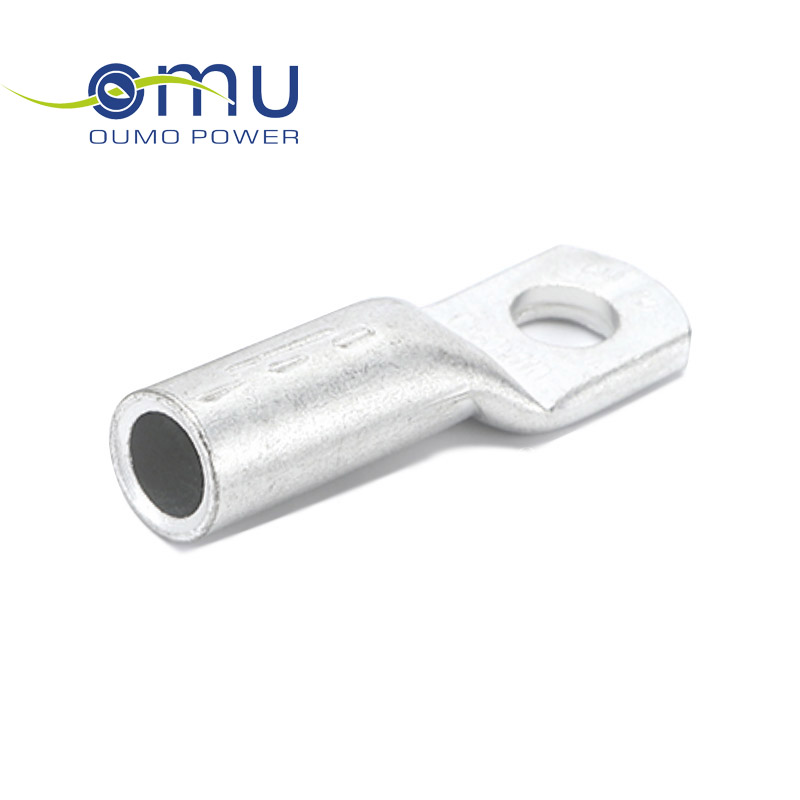

Copper Cable Terminals Non-Isolated AUS
They are made of higher 99.9 percents pure copper tube T2 and coated with tin. Their working temperature -55℃-150℃.
- Product parameters
- Return
|
Specifications |
Dimensions(mm) |
Code No. |
|||
|
φ |
D |
d |
L |
||
|
AUS-6 |
Φ5.2, Φ6.2, Φ8.2 |
5.5 |
4.1 |
37.5 |
OMU-AUS-001 |
|
AUS-10 |
Φ6.2, Φ8.2 |
6.5 |
5.1 |
37.5 |
OMU-AUS-002 |
|
AUS-16 |
Φ6.2, Φ8.2, Φ10.5 |
8 |
6 |
47 |
OMU-AUS-003 |
|
AUS-25 |
Φ6.2, Φ8.2, Φ10.5 |
10.5 |
8 |
52 |
OMU-AUS-004 |
|
AUS-35 |
Φ6.2, Φ8.2, Φ10.5, Φ12.5 |
12.5 |
9.5 |
55 |
OMU-AUS-004 |
|
AUS-50 |
Φ8.2, Φ10.5, Φ12.5 |
14.5 |
10.9 |
69 |
OMU-AUS-006 |
|
AUS-70 |
Φ8.2, Φ10.5, Φ12.5 |
16.5 |
12.7 |
72 |
OMU-AUS-007 |
|
AUS-95 |
Φ10.5, Φ12.5 |
19 |
14.8 |
80 |
OMU-AUS-008 |
|
AUS-120 |
Φ12.5, Φ16.5 |
20.5 |
16.1 |
86 |
OMU-AUS-009 |
|
AUS-150 |
Φ12.5, Φ16.5 |
23.5 |
18 |
95 |
OMU-AUS-010 |
|
AUS-185 |
Φ16.5 |
26 |
20.6 |
100 |
OMU-AUS-011 |
|
AUS-240 |
Φ16.5 |
28 |
22.4 |
112 |
OMU-AUS-012 |
|
AUS-300 |
Φ16.5, Φ20.5 |
30 |
23.6 |
119 |
OMU-AUS-013 |
|
AUS-400 |
Φ16.5, Φ20.5 |
34 |
26 |
140 |
OMU-AUS-014 |
|
AUS-500 |
Φ16.5, Φ20.5, Φ24.5 |
38 |
29 |
150 |
OMU-AUS-015 |
|
AUS-630 |
Φ16.5, Φ20.5, Φ24.5 |
45 |
35 |
160 |
OMU-AUS-016 |
