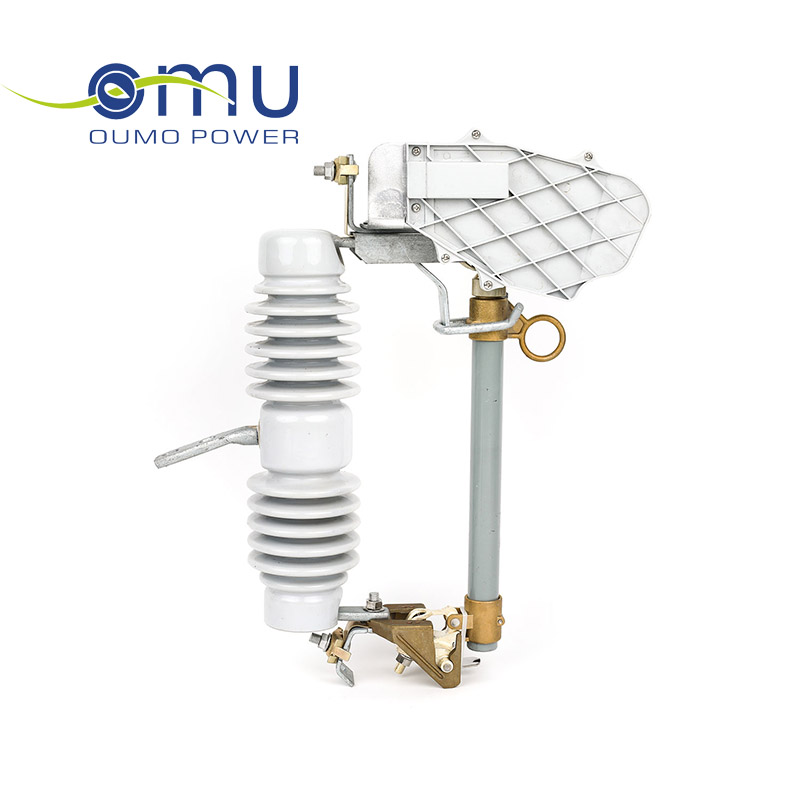

Drop Out Fuse 11~15KV(F)-100A (200A) Porcelain Type RW12-11~15(F)
- Product parameters
- Return
Type: RW12-11~15(F)
Rated Voltage: 11~15KV
Rated Current: 100A, 200A
Breaking Current: 10KA, 12KA
Impulse Voltage: 110KV
Power frequency withstand voltage:40KV
Leakage distance: 372mm
Weight: 8.5KGS, 9KGS
Dimensions: 580x400x150mm
