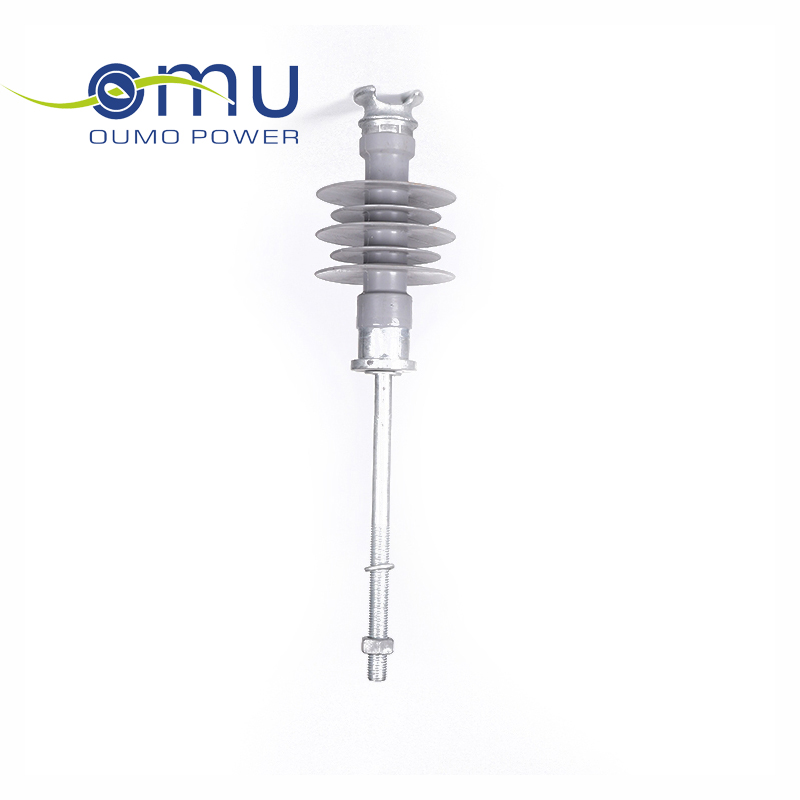

Model No:FPQ2-11~15-10T 20~22

Height : 275± 10 mm

Min Dry Arcing Distance: 210mm

Mini Creepage Distance: 500mm

Diameter of the rod: 38mm

Number of sheds: 5pcs

Diameter of sheds: 140/110mm

Rated Bending Load: 10kN

Rated Voltage: 11~15kV

Lighting Impulse withstand voltage: 105kV

Power Frequency withstand voltage: 50kV
