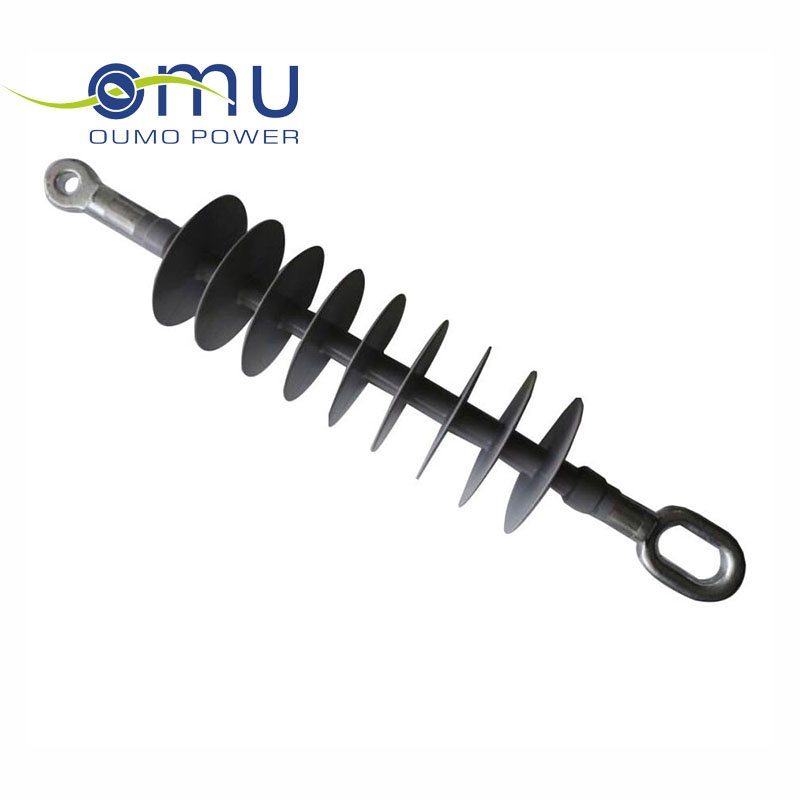

Model Composite Tension Insulator FXB-33~36/70CO

Whatsapp: +86-18357732119

PDF Download

Model No:FXB-33~36/70CO

Height : 595± 10 mm

End fittings: Tongue & Hook Eye

Min Dry Arcing Distance: 460mm

Mini Creepage Distance: 1200mm

Diameter of the rod: 18mm

Number of sheds: 9pcs

Diameter of sheds: 130/100mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 230kV

Power Frequency withstand voltage: 95kV
