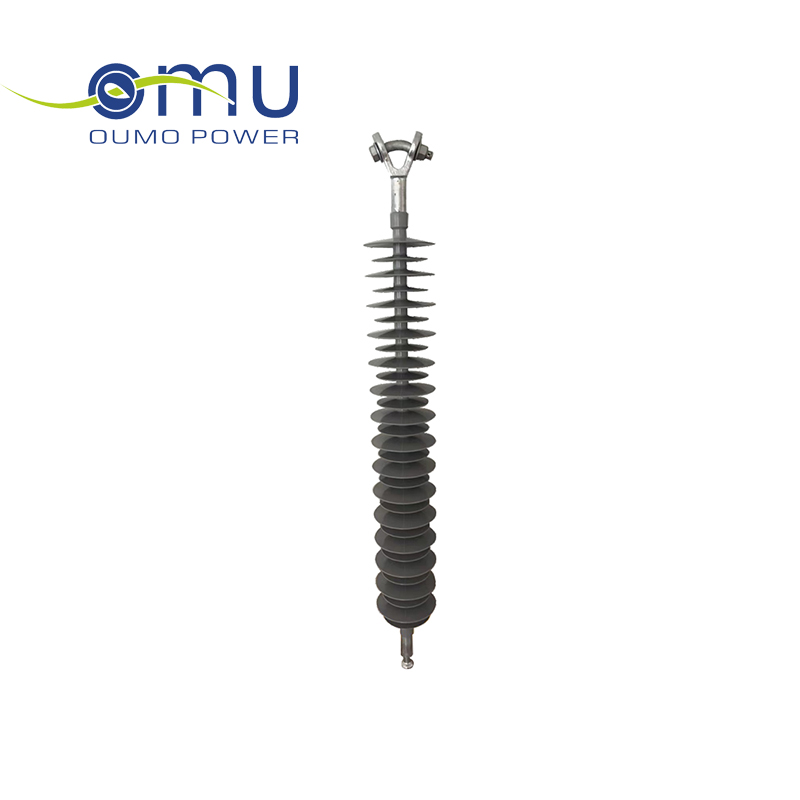

Model No:FXBW-115-120YQ
Height : 1460± 30 mm
End fittings: Ball & Y Clevis
Min Dry Arcing Distance: 1275mm
Mini Creepage Distance: 4000mm
Diameter of the rod: 18mm
Number of sheds: 30pcs
Diameter of sheds: 142/112mm
Specified Mechanical Load: 120kN
Routine Test Load: 60kN
Rated Voltage: 115kV
Lighting Impulse withstand voltage: 550kV
Power Frequency withstand voltage: 275kV
