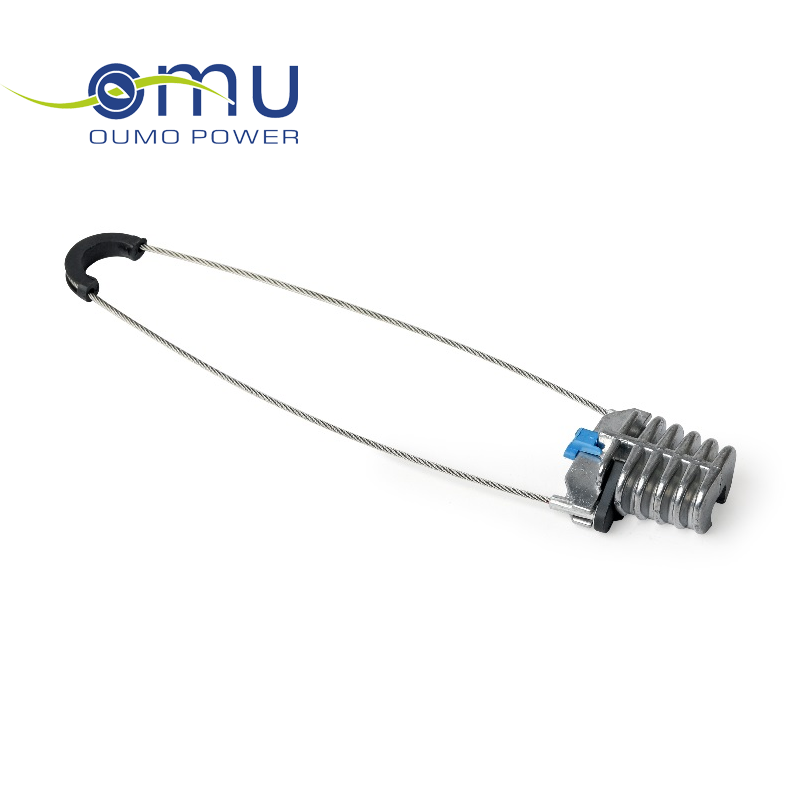

Dead end clamp (tension clamp or anchor clamp) 16-25mm² PAM-09
This anchoring assembly is used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger. It comprises a bracket supporting one or two anchoring clamps.
- Product parameters
- Return
Features:
1. Reduced dimensions for easier handling
2. High mechanical and climatic resistance
3. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath
4. Stainless steel bail with two marbles compressed on the end.
Standard:NF C 33-041
|
Type |
Cross section(mm²） |
|
PAM-06 |
16-20mm² |
|
PAM-07 |
16-25mm² |
|
PAM-08 |
16-25mm² |
|
PAM-09 |
16-25mm² |
