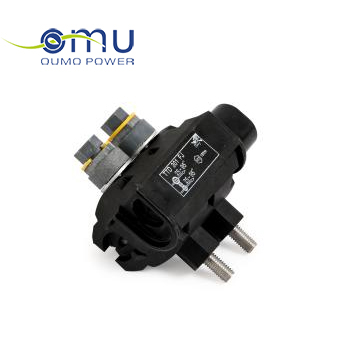

Insulation piercing connector TTD
- Product parameters
- Return
Feature:
1.Main line:Insulated copper or aluminum
2.Branch line:Insulated copper or aluminum
3.Live-line work or power-cut work is allowable
4.Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.
5.The screw that is equipped with fastening torque nut is anti-corrosion treated,the torque nut enables the installation to be much simple,safe and quick,its constant puncturing pressure guarantees best electrical effect for the cable.
6.The connector is featured with property of waterproof,it is able to withstand voltage of 6kV in water without breakdown phenomenon.
7.The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.It can be branched on the left or right side according to the demand.
|
Type |
Main line
(mm²)
|
Branch line
(mm²)
|
Max current
(A)
|
Bolt |
Torque nut |
|
TTD041FJ |
6-35 |
1.5-10 |
86 |
1*M8*13mm |
F1309 |
|
TTD051FJ |
16-95 |
1.5-10 |
86 |
1*M8*13mm |
F1309 |
|
TTD101FJ |
6-50 |
2.5(6)-35 |
200 |
1*M8*13mm |
F1314 |
|
TTD151FJ |
25-95 |
2.5(6)-35 |
200 |
1*M8*13mm |
F1314 |
|
TTD201FJ |
35-95 |
25-95 |
377 |
1*M8*13mm |
F1318 |
|
TTD251FJ |
50-150 |
25-95 |
377 |
1*M8*13mm |
F1318 |
|
TTD271FJ |
35-120 |
35-120 |
377 |
1*M8*13mm |
F1318 |
|
TTD281FJ |
50-185 |
2.5(6)-35 |
200 |
1*M8*13mm |
F1314 |
|
TTD301FJ |
25-95 |
25-95 |
377 |
2*M8*13mm |
F1314 |
|
TTD401FJ |
50-185 |
50-150 |
504 |
2*M8*13mm |
F1318 |
|
TTD431FJ |
70-240 |
16-95 |
377 |
2*M10*17mm |
F1720 |
|
TTD441FJ |
95-240 |
50-150 |
504 |
2*M10*17mm |
F1725 |
|
TTD451FJ |
95-240 |
95-240 |
530 |
2*M10*17mm |
F1725 |
|
TTD551FJ |
120-400 |
95-240 |
679 |
2*M10*17mm |
F1737 |
