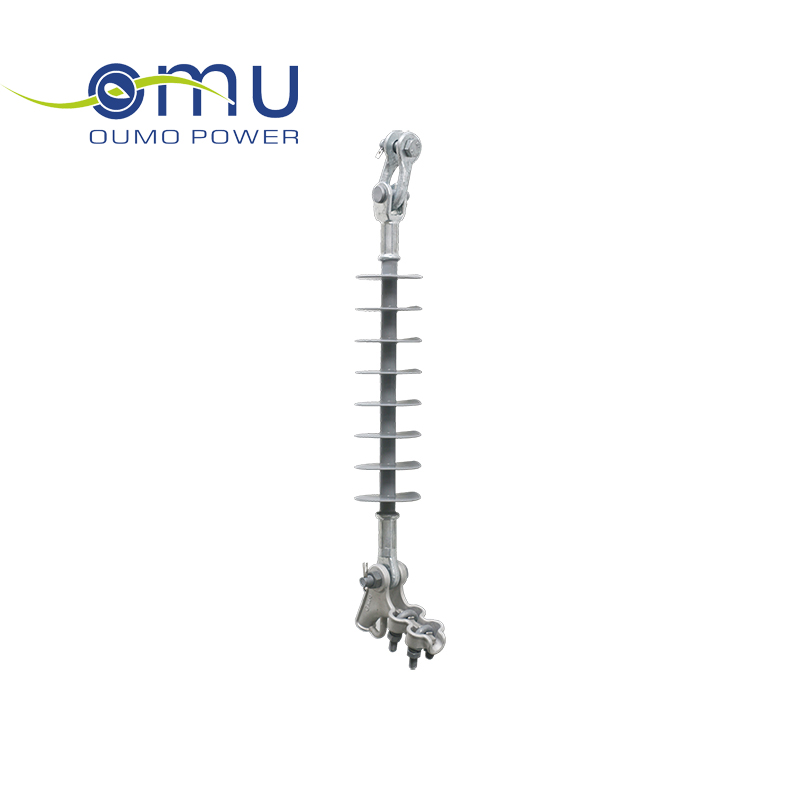

Composite Insulator String 33~36KV

Whatsapp: +86-18357732119

PDF Download

Model No:33~36KV Composite Insulator String

Height : 545± 10 mm

End fittings: Tongue & Clevis

Min Dry Arcing Distance: 410mm

Mini Creepage Distance: 915mm

Diameter of the rod: 17mm

Number of sheds: 8pcs

Diameter of sheds: 98mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 230kV

Power Frequency withstand voltage: 95kV
