Aluminum Mechanical Lug BLMT
- Product parameters
- Return
Material:
Body:High strength aluminum alloy
Bolts:Brass or aluminum alloy
Surface:tin plated
Feature:
1.Mechanical lug,no needs of crimping tools and the attendant operator skill
2.Only a socket spanner or a wrench is needed
3.Torque controlled sheared off bolts guarantee a good electrical contact
4.Wide application range
5.The solid palm eliminates the ingress of moisture
6.Prefilled with jointing compound
|

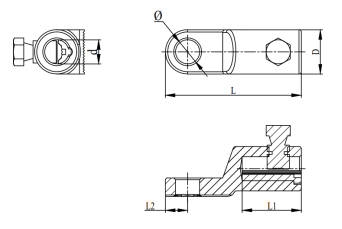

Type |
Cross section(mm²） |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
No.of bolt |
|
BLMT-25/95 |
25-95 |
φ13,φ17 |
24 |
13 |
73 |
32 |
1 |
|
BLMT-35/150 |
35-150 |
φ13,φ17 |
28 |
16.5 |
100 |
44 |
1 |
|
BLMT-95/240 |
95-240 |
φ13,φ17,φ21 |
33 |
19.5 |
129 |
64 |
2 |
|
BLMT-120/300 |
120-300 |
φ13,φ17 |
37 |
24 |
133 |
62 |
2 |
