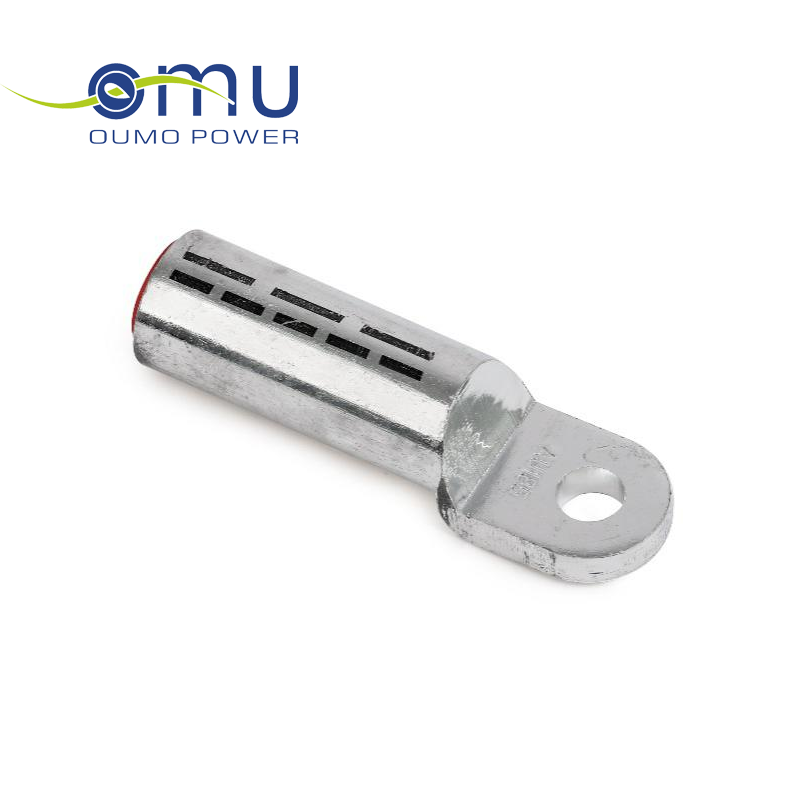

Aluminum lugs AU
- Product parameters
- Return
Feature:
Material:Al≥99.5%
Surface:tin plated
Oil blocking structure
Clear markings on barrel to indicate correct crimping location,together with DIN standard crimping die.
Prefilled with jointing compound.
|

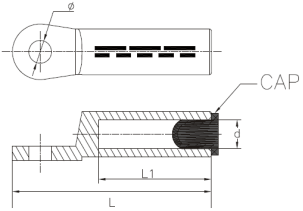

Type |
φ±0.5 |
d±0.3 |
L±2 |
L1±2 |
|
AU-16 |
8.4 |
5.8 |
60 |
29 |
|
AU-25 |
10.5 |
6.8 |
62.5 |
29 |
|
AU-35 |
10.5 |
8.0 |
77 |
41 |
|
AU-50 |
10.5 |
9.8 |
78.5 |
42 |
|
AU-70 |
10.5 |
11.5 |
85 |
51 |
|
AU-95 |
13.0 |
13.5 |
90 |
55 |
|
AU-120 |
13.0 |
14.7 |
96 |
55 |
|
AU-150 |
13.0 |
16.3 |
106 |
59 |
|
AU-185 |
13.0 |
18.3 |
108 |
59 |
|
AU-240 |
17.0 |
21.0 |
124 |
69 |
|
AU-300 |
17.0 |
23.3 |
125 |
69 |
