Rated voltage of system line to line up to

15kV

Type

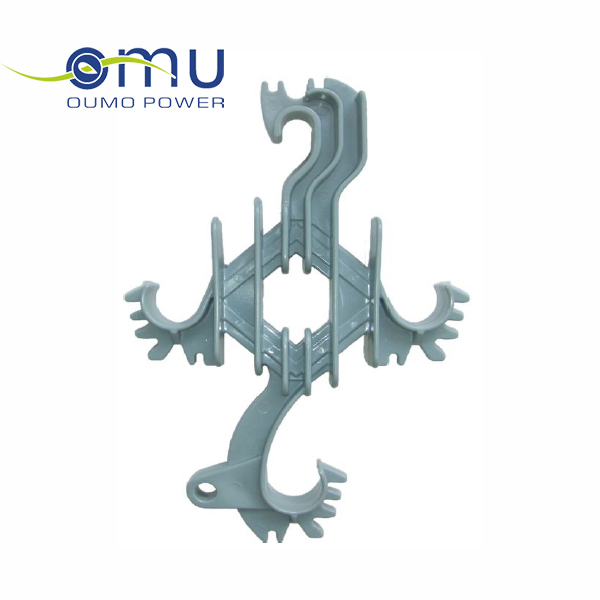

CSL-15-02

Electrical characteristics

Low-frequency withstand voltage

Dry

45kV/min

Wet

35kV/min

Low-frequency flashover voltage

Dry

58kV

Wet

45kV

Critical dry impulse flashover voltage

Pos./kV

80kV

Neg./kV

95kV

Mechanical characteristics

Ultimate mechanical strength

4500N

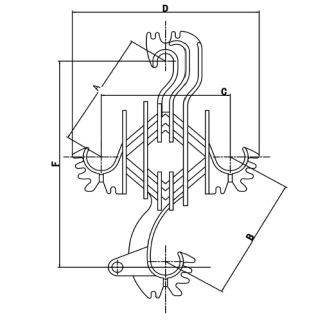

Dimensions(mm)

D

254

H

165

h

300

C

175

Weight(kg)

0.55
