PRODUCT DISPLAY

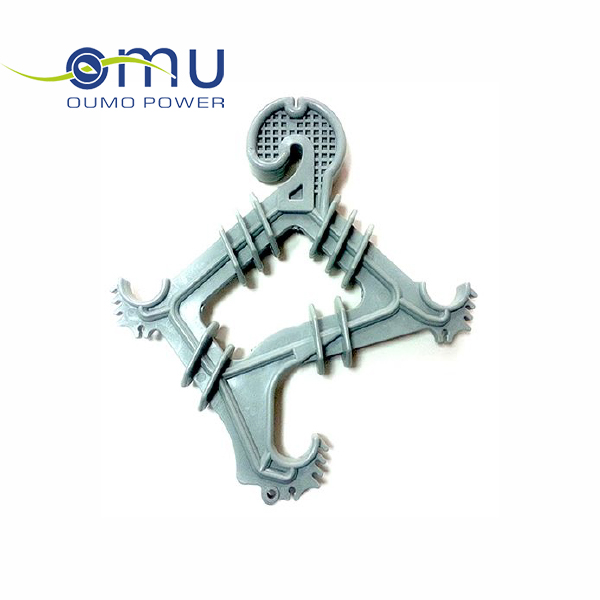

22/33kV Rated Cable Spacer-Snap tie attachment CSL-22/33
- Product parameters
- Return
|
Rated voltage of system line to line up to |
22-33kV |
||
|
Type |
CSL-22/33
|
||
|
Electrical characteristics |
Low-frequency withstand voltage |
Dry |
70kV/min |
|
Wet |
50kV/min |
||
|
Low-frequency flashover voltage |
Dry |
85kV |
|
|
Wet |
65kV |
||
|
Critical dry impulse flashover voltage |
Pos./kV |
125kV |
|
|
Neg./kV |
145kV |
||
|
Mechanical characteristics |
Ultimate mechanical strength |
8000N |
|
|
Dimensions(mm) |
D |
357 |
|
|
H |
340 |
||
|
h |
55 |
||
|
C1 |
250 |
||
| C2 | 250 | ||
|
Weight(kg) |
1.2 |
||
|
Qty(pcs)/Ctn |
6 |
||
|
Qty(pcs)/20FT |
2520 |
||
