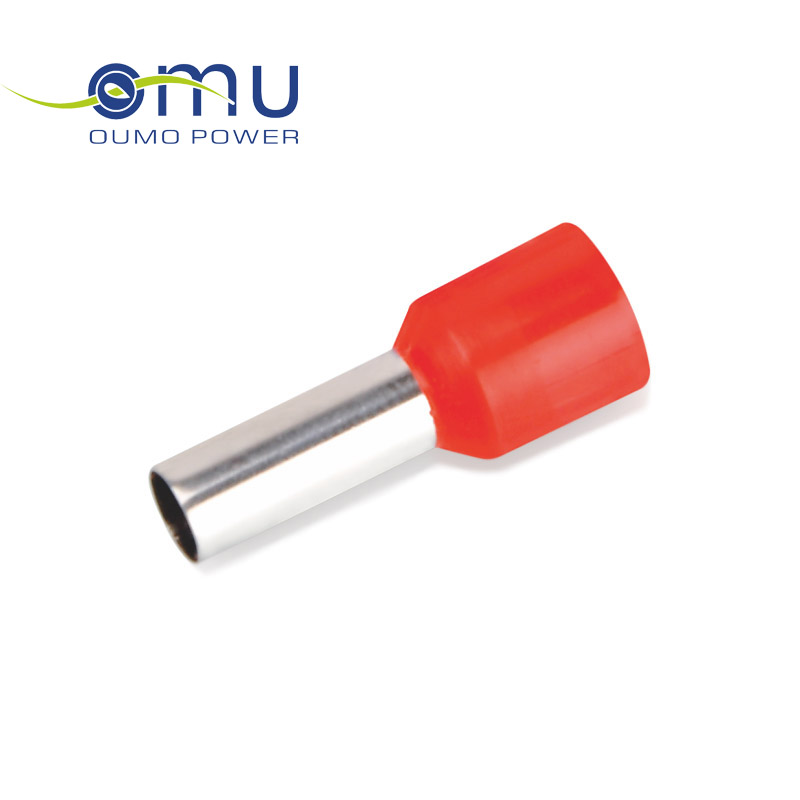

PRODUCT DISPLAY
- Product parameters
- Return
|
Specifications |

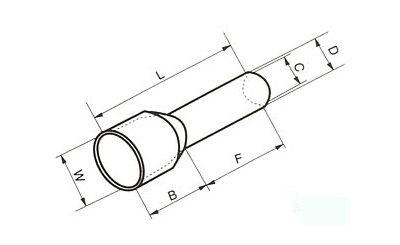

Dimension (mm) |
Lead Area mm² |
Color of Insulating bush（up）Germany（down）France |
Code No. |
|||||
|
F |
L |
W |
DΦ |
CΦ |
A.W.G |
||||
|
E0506 |
6 |
12 |
2.6 |
1.3 |
1 |
#22 |
0.5 |
orange white |
OMU-E-001 |
|
E0508 |
8 |
14 |
OMU-E-002 |
||||||
|
E0510 |
10 |
16 |
OMU-E-003 |
||||||
|
E7506 |
6 |
12.4 |
2.8 |
1.5 |
1.2 |
#20 |
0.75 |
white blue |
OMU-E-004 |
|
E7508 |
8 |
14.6 |
OMU-E-005 |
||||||
|
E7510 |
10 |
16.4 |
OMU-E-006 |
||||||
|
E7512 |
12 |
18.4 |
OMU-E-007 |
||||||
|
E1006 |
6 |
12.4 |
3 |
1.7 |
1.4 |
#18 |
1 |
yellow red |
OMU-E-008 |
|
E1008 |
8 |
14.6 |
OMU-E-009 |
||||||
|
E1010 |
10 |
16.4 |
OMU-E-010 |
||||||
|
E1012 |
12 |
18.4 |
OMU-E-011 |
||||||
|
E1508 |
8 |
14.6 |
3.5 |
2 |
1.7 |
#16 |
1.5 |
red black |
OMU-E-012 |
|
E1510 |
10 |
16.4 |
OMU-E-013 |
||||||
|
E1518 |
18 |
24.4 |
OMU-E-014 |
||||||
|
E2508 |
8 |
15.2 |
4 |
2.6 |
2.3 |
#14 |
2.5 |
blue gray |
OMU-E-015 |
|
E2512 |
12 |
19 |
OMU-E-016 |
||||||
|
E2518 |
18 |
25 |
OMU-E-017 |
||||||
|
E4009 |
9 |
16.5 |
4.4 |
3.2 |
2.8 |
#12 |
4 |
gray orange |
OMU-E-018 |
|
E4012 |
12 |
19.5 |
OMU-E-019 |
||||||
|
E4018 |
18 |
25.5 |
OMU-E-020 |
||||||
|
E6012 |
12 |
20 |
6.3 |
3.9 |
3.5 |
#10 |
6 |
black green |
OMU-E-021 |
|
E6018 |
18 |
26 |
OMU-E-022 |
||||||
|
E10-12 |
12 |
21.5 |
7.6 |
4.9 |
4.5 |
#7 |
10 |
ivory brown |
OMU-E-023 |
|
E10-18 |
18 |
27.5 |
OMU-E-024 |
||||||
|
E16-12 |
12 |
22.2 |
8.8 |
6.2 |
5.8 |
#5 |
16 |
green ivory |
OMU-E-025 |
|
E16-18 |
18 |
28.2 |
OMU-E-026 |
||||||
|
E25-16 |
16 |
29 |
11.2 |
7.9 |
7.5 |
#4 |
25 |
brown black |
OMU-E-027 |
|
E25-22 |
22 |
35 |
OMU-E-028 |
||||||
|
E35-16 |
16 |
30 |
12.7 |
8.7 |
8.3 |
#2 |
35 |
taupe |
OMU-E-029 |
|
E35-25 |
25 |
39 |
OMU-E-030 |
||||||
|
E50-20 |
20 |
36 |
15.3 |
10.9 |
10.3 |
#1 |
50 |
olive |
OMU-E-031 |
|
E50-25 |
25 |
41 |
OMU-E-032 |
||||||
