Composite Pin Insulator

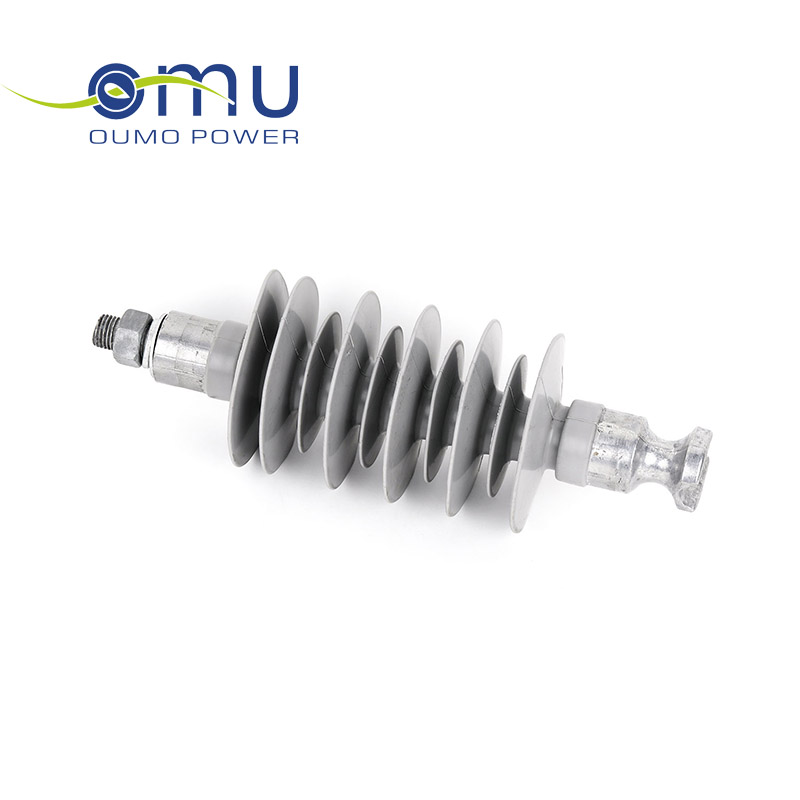

Composite Pin Insulator FPQ3-33~36-10T20~22

Whatsapp: +86-18357732119

Model No:FPQ3-33~36-10T20~22

Height : 385± 10 mm

Min Dry Arcing Distance: 330mm

Mini Creepage Distance: 1080mm

Diameter of the rod: 38mm

Number of sheds: 11pcs

Diameter of sheds: 140/110mm

Rated Bending Load: 10kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 250kV

Power Frequency withstand voltage: 105kV
