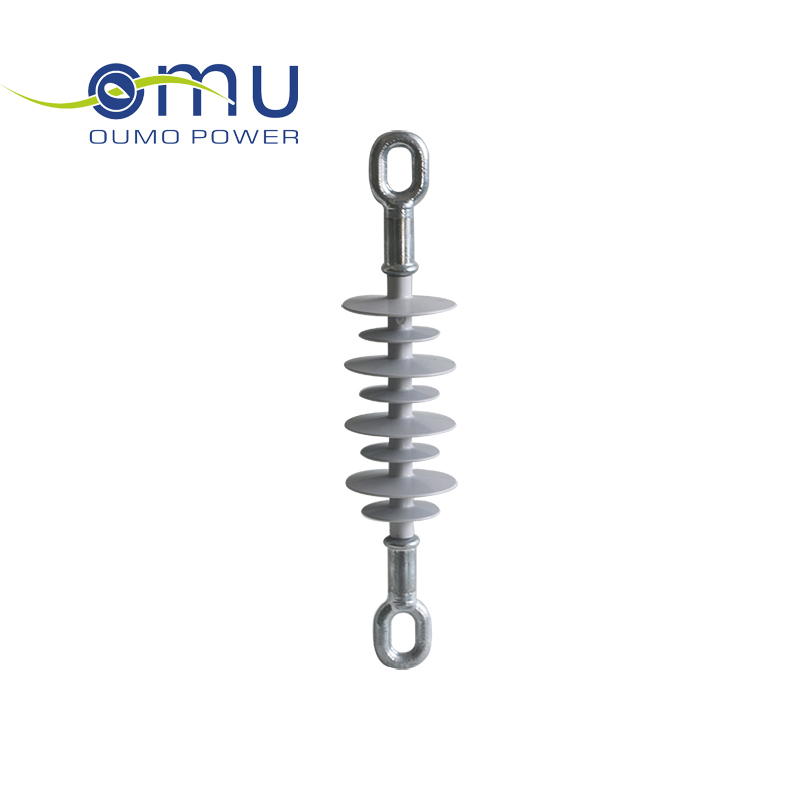

Model Composite Suspention Insulator FXBOW-20~27/70
- Product parameters
- Return
Model No: FXBOW-20~27/70
Height : 475± 10 mm
End fittings: Hook Eye & Hook Eye
Min Dry Arcing Distance: 270mm
Mini Creepage Distance: 725mm
Diameter of the rod: 16mm
Number of sheds: 8pcs
Diameter of sheds: 105/75mm
Specified Mechanical Load: 70kN
Routine Test Load: 35kN
Rated Voltage:20~27kV
Lighting Impulse withstand voltage: 160kV
Power Frequency withstand voltage: 85kV
