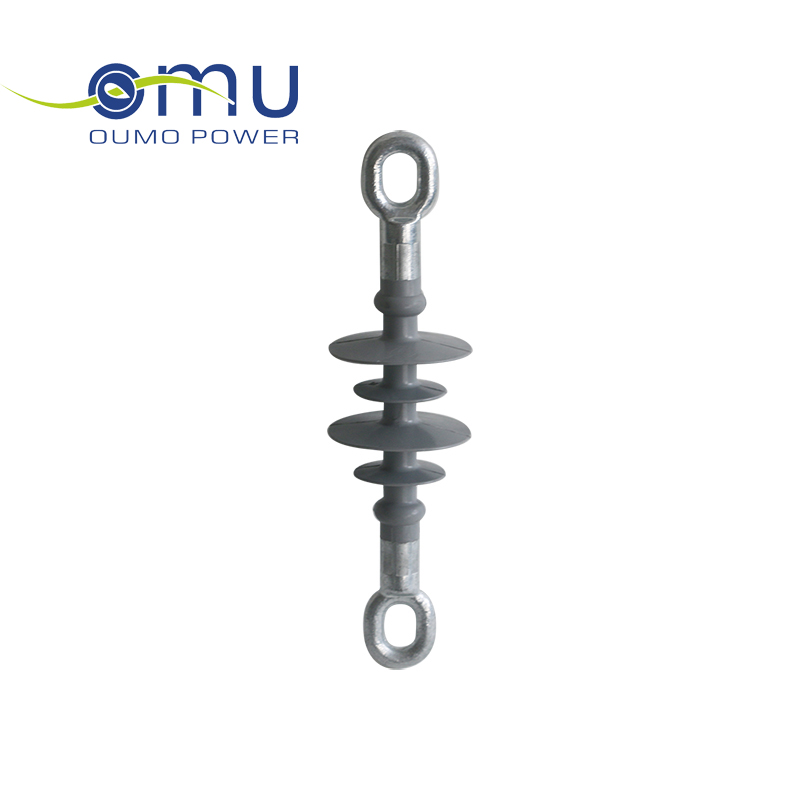

Model Composite Suspention Insulator FXBOW-11~15/70

Whatsapp: +86-18357732119

PDF Download

Model No: FXBOW-11~15/70

Height : 365± 10 mm

End fittings: Hook Eye & Hook Eye

Min Dry Arcing Distance: 190mm

Mini Creepage Distance: 360mm

Diameter of the rod: 18mm

Number of sheds: 4pcs

Diameter of sheds: 115/85mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage:11~15kV

Lighting Impulse withstand voltage: 105kV

Power Frequency withstand voltage: 55kV
