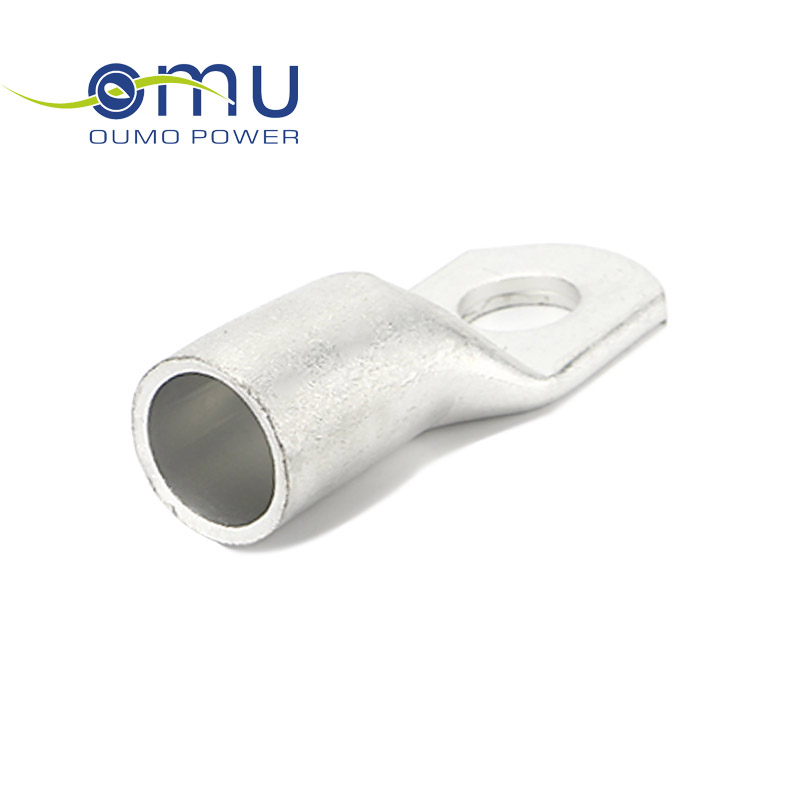

Copper Cable Terminals Non-Isolated JGY
They are made of higher 99.9 percents pure copper tube T2 and coated with tin. Their working temperature -55℃-150℃.
- Product parameters
- Return
|
Specifications |
Dimensions(mm) |
Code No. |
|||
|
D |
d |
φ |
L |
||
|
JGY-1.5 |
3.5 |
2.1 |
Φ4.2, Φ5.2 |
18 |
OMU-JGY-001 |
|
JGY-2.5 |
4 |
2.6 |
Φ4.2, Φ5.2, Φ6.2 |
19 |
OMU-JGY-002 |
|
JGY-4 |
4.8 |
3.4 |
Φ5.2, Φ6.2 |
21 |
OMU-JGY-003 |
|
JGY-6 |
5.5 |
4.1 |
Φ5.2, Φ6.2, Φ8.2 |
24 |
OMU-JGY-004 |
|
JGY-10 |
6.5 |
5.1 |
Φ6.2, Φ8.2 |
28 |
OMU-JGY-004 |
|
JGY-16 |
8 |
6.4 |
Φ6.2, Φ8.2, Φ10.5 |
33 |
OMU-JGY-006 |
|
JGY-25 |
9 |
7 |
Φ6.2, Φ8.2, Φ10.5 |
36 |
OMU-JGY-007 |
|
JGY-35 |
10.5 |
8.5 |
Φ6.2, Φ8.2, Φ10.5, Φ12.5 |
42 |
OMU-JGY-008 |
|
JGY-50 |
12 |
9.8 |
Φ8.2, Φ10.5, Φ12.5 |
49 |
OMU-JGY-009 |
|
JGY-70 |
14.5 |
11.9 |
Φ8.2, Φ10.5, Φ12.5 |
55 |
OMU-JGY-010 |
|
JGY-95 |
16 |
13 |
Φ10.5, Φ12.5 |
60 |
OMU-JGY-011 |
|
JGY-120 |
19 |
15.4 |
Φ12.5,Φ16.5 |
67 |
OMU-JGY-012 |
|
JGY-150 |
20.5 |
16.7 |
Φ12.5,Φ16.5 |
73 |
OMU-JGY-013 |
|
JGY-185 |
23.5 |
19.3 |
Φ16.5 |
78 |
OMU-JGY-014 |
|
JGY-240 |
26 |
21.2 |
Φ16.5 |
92 |
OMU-JGY-015 |
|
JGY-300 |
30 |
24 |
Φ16.5, Φ20.5 |
102 |
OMU-JGY-016 |
|
JGY-400 |
34 |
27.6 |
Φ16.5, Φ20.5 |
113 |
OMU-JGY-017 |
|
JGY-500 |
38 |
31.6 |
Φ16.5, Φ20.5 |
123 |
OMU-JGY-018 |
|
JGY-630 |
45 |
37.6 |
Φ20.5 |
145 |
OMU-JGY-019 |
