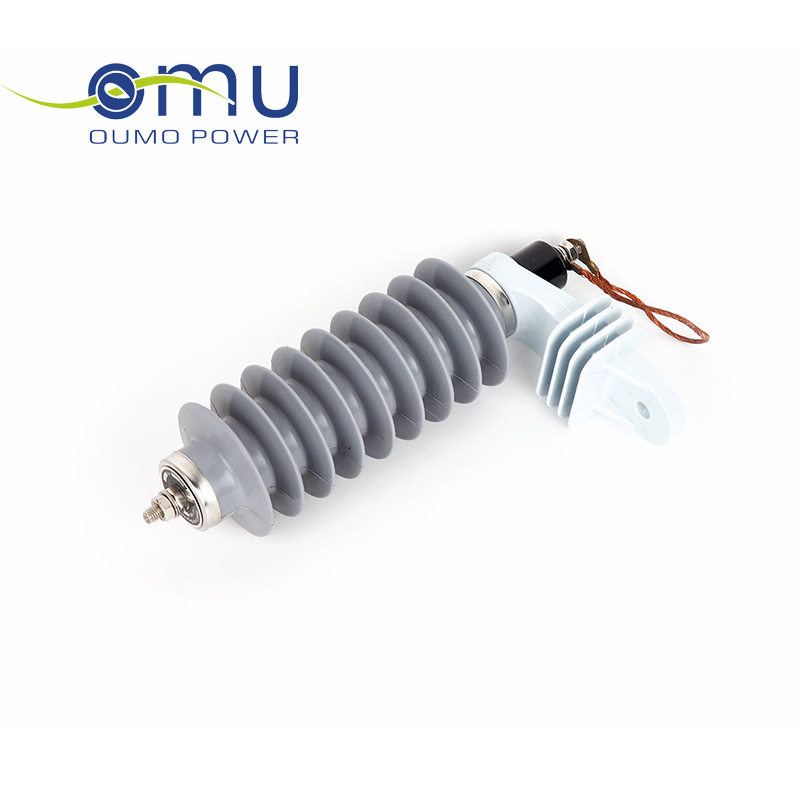

Model: HY10W-18, HY10W-21, HY10W-24,HY10W-27

Rated Voltage: 18KV,21KV,24KV,27KV

Maximum Continuous Operating Voltage (MCOV): 15.3KV,17.0KV,19.5KV,22.0KV

1/4μs Lighting Current Impulse: 61.5KV,71.8KV,82.0KV,92.0KV

8/20μs Lighting Current Impulse: 54KV,63KV,72KV,81KV

30/60μs Switching Current Impulse: 46.2KV,54.2KV,62.0KV,69.8KV

2000μs Rectangular Wave Current Impulse Withstand : 250A,250A,250A,250A

4/10μs High Current Impulse Withstand: 100KA,100KA,100KA,100KA
