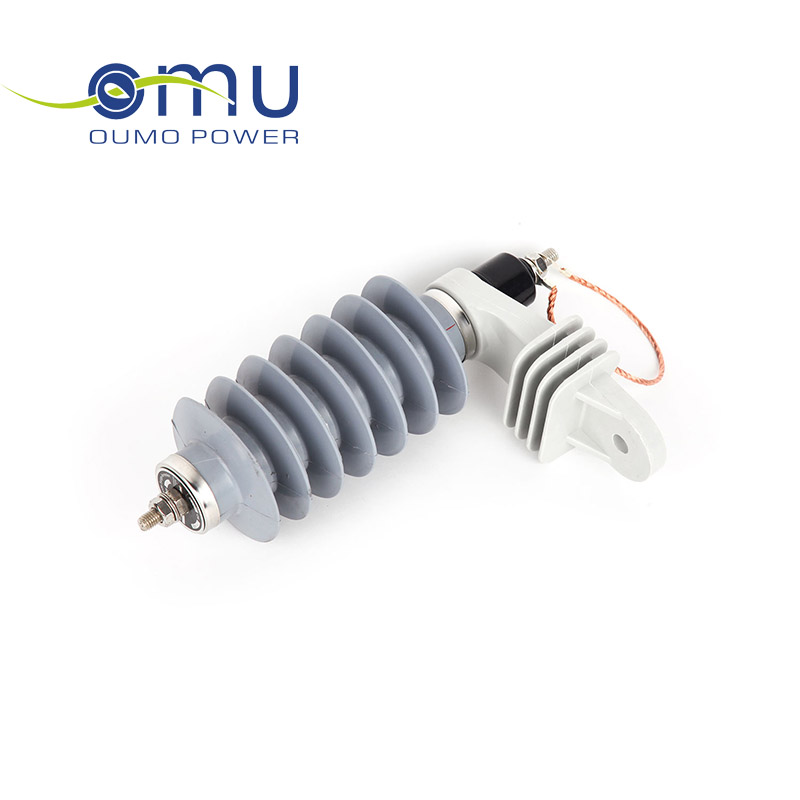

Surge Arrester 18~24KV 10KA

Surge Arrester 18~24KV 10KA HY10W-18, HY10W-21, HY10W-24

Whatsapp: +86-18357732119

Model: HY10W-18, HY10W-21, HY10W-24

Rated Voltage: 18KV,21KV,24KV

Maximum Continuous Operating Voltage (MCOV): 15.3KV,17.0KV,19.5KV

1/4μs Lighting Current Impulse: 61.5KV,71.8KV,82.0KV

8/20μs Lighting Current Impulse: 54KV,63KV,72KV

30/60μs Switching Current Impulse: 46.2KV,54.2KV,62.0KV

2000μs Rectangular Wave Current Impulse Withstand : 250A,250A,250A

4/10μs High Current Impulse Withstand: 100KA,100KA,100KA
