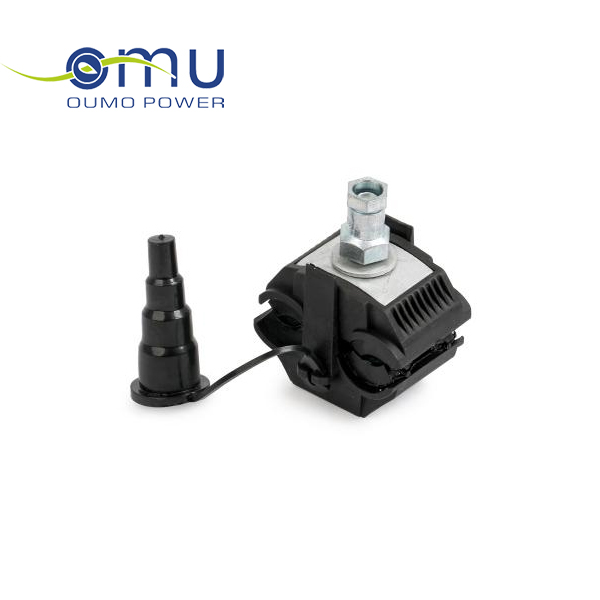

Insulation piercing connector SJ(JJC)
- Product parameters
- Return
Material:
Insulation material made of weather resistant glass fiber reinforced polymer.
Contact teeth made of tinned brass or copper or aluminum.
Feature:
Standard:EN 50483-4,NF C33-020,NF C33-004
|
Type |
Main line section
(mm²)
|
Branch section
(mm²)
|
Norminal current(A) |
Dimensions (mm) |
Weight
(g)
|
Piercing Depth(mm) |
No. of bolts |
|
JJC888 |
0.75-6 |
0.75-6 |
41 |
21*27*23 |
10 |
1-1.5 |
1 |
|
JJC-1 |
1.5-25 |
1.5-10 |
55 |
27*41*62 |
55 |
1.5-2 |
1 |
|
JJC-2 |
16-95 |
1.5-10 |
55 |
27*41*62 |
55 |
1-2 |
1 |
|
JJC-3(A) |
6-50 |
4-25 |
157 |
42*45*62 |
110 |
2.5-3.5 |
1 |
|
JJC-3 |
16-95 |
4-35(50) |
157 |
46*52*87 |
160 |
2.5-3.5 |
1 |
|
JJC-4 |
50-150 |
6-35(50) |
157 |
46*52*87 |
162 |
2.5-3.5 |
1 |
|
JJC-5 |
25-120 |
25-120 |
214 |
50*61*100 |
198 |
3-4 |
1 |
