PRODUCT DISPLAY

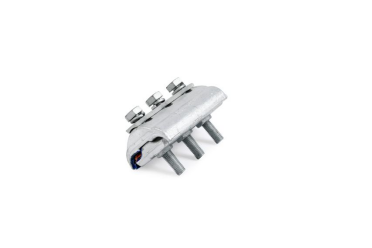

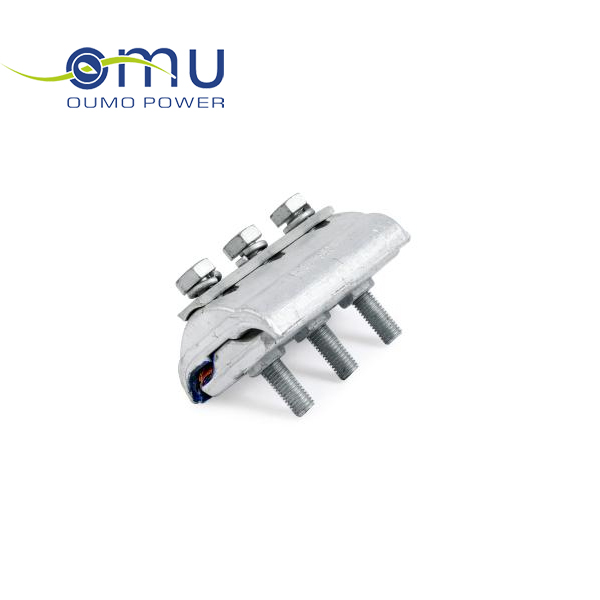

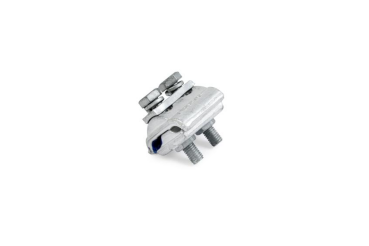

Bimetallic Clamp CAPG
- Product parameters
- Return
Structure Feature:
1.Select corrosion-resistance aluminum 99.5% with hot forged bimetallic sheet.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
CAPG-A1 |
CU6-50,AL16-70 |
1*M8*40 |
|
CAPG-A2 |
CU10-95,AL25-150 |
1*M8*45 |
|
CAPG-B1 |
CU6-50,AL16-70 |
2*M8*45 |
|
CAPG-B2 |
CU10-95,AL25-150 |
2*M8*50 |
|
CAPG-B3 |
CU25-200,AL25-240 |
2*M10*60 |
|
CAPG-B4 |
CU35-240,AL35-300 |
2*M10*70 |
|
CAPG-C1 |
CU6-50,AL16-70 |
3*M8*45 |
|
CAPG-C2 |
CU10-95,AL25-150 |
3*M8*50 |
|
CAPG-C3 |
CU25-200,AL25-240 |
3*M10*60 |
|
CAPG-C4 |
CU35-240,AL35-300 |
3*M10*70 |
