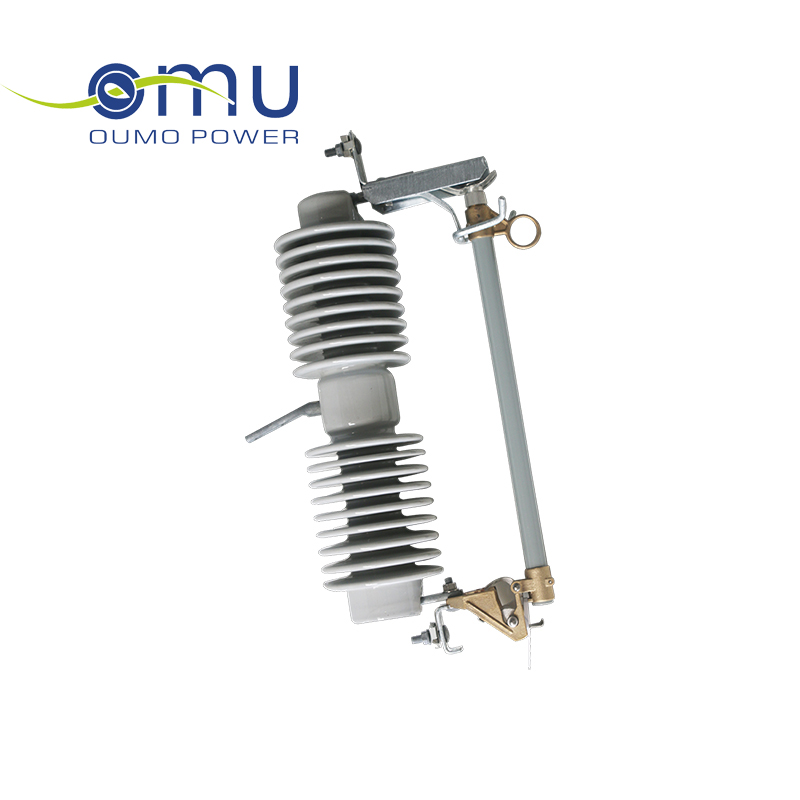

Drop Out Fuse 33~36KV 100A（200A) Porcelain Type

Drop Out Fuse 33~36KV 100A（200A) Porcelain Type RW12-33~36/100, RW12-33~36/200

Whatsapp: +86-18357732119

Type: RW12-33~36/100, RW12-33~36/200

Rated Voltage: 33~36KV

Rated Current: 100A, 200A

Breaking Current: 10KA, 12.5KA

Impulse Voltage: 170KV

Power frequency withstand voltage: 70KV

Leakage distance: 660(720)mm

Weight: 14.5KGS, 15KGS

Dimensions: 620x380x170mm
