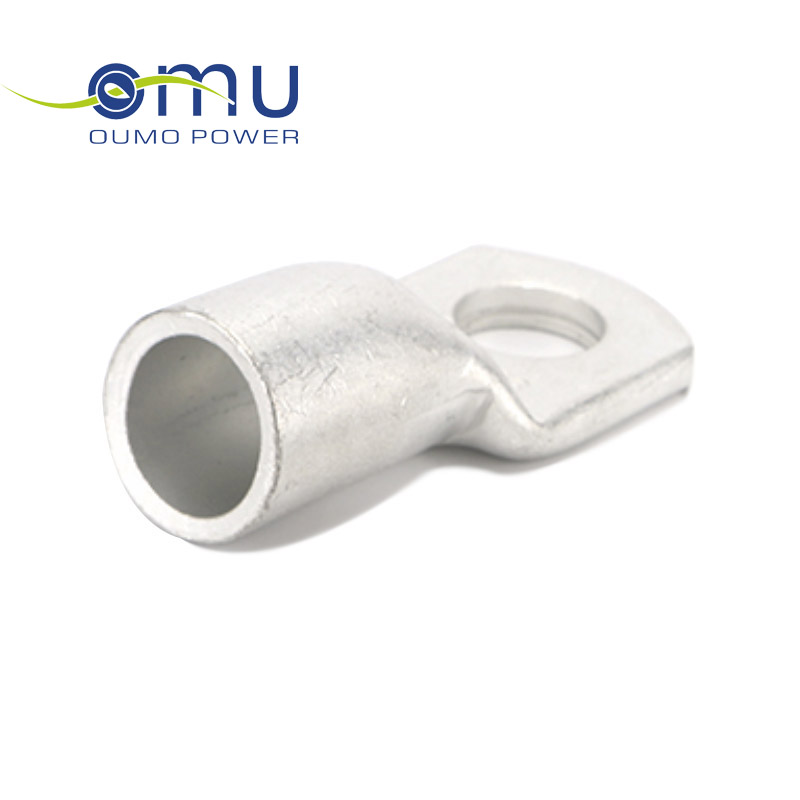

Copper Cable Terminals Non-Isolated NCL
They are made of higher 99.9 percents pure copper tube T2 and coated with tin. Their working temperature -55℃-150℃.
- Product parameters
- Return
|
Specifications |
Dimensions(mm) |
Code No. |
||||
|
D |
d |
L |
L1 |
|
||
|
NCL-25 |
9.5 |
7.2 |
Φ8.2 |
36 |
12 |
OMU-NCL-001 |
|
NCL-35 |
11 |
8.2 |
Φ8.2 |
42 |
14 |
OMU-NCL-002 |
|
NCL-50 |
12.5 |
9.5 |
Φ10.5 |
49 |
16 |
OMU-NCL-003 |
|
NCL-70 |
14.5 |
11.3 |
Φ10.5 |
55 |
20 |
OMU-NCL-004 |
|
NCL-95 |
17 |
13.4 |
Φ12.5 |
60 |
22 |
OMU-NCL-005 |
|
NCL-120 |
20.5 |
15.7 |
Φ12.5 |
67 |
23 |
OMU-NCL-006 |
|
NCL-150 |
22.5 |
17.1 |
Φ12.5 |
73 |
26 |
OMU-NCL-007 |
|
NCL-185 |
24 |
18.4 |
Φ16.5 |
78 |
32 |
OMU-NCL-008 |
|
NCL-240 |
28 |
21.4 |
Φ16.5 |
92 |
38 |
OMU-NCL-009 |
|
NCL-300 |
31 |
23.8 |
Φ16.5 |
102 |
42 |
OMU-NCL-010 |
|
NCL-400 |
34.5 |
27.6 |
Φ16.5 |
113 |
44 |
OMU-NCL-011 |
|
NCL-500 |
39 |
30.6 |
Φ16.5 |
123 |
48 |
OMU-NCL-012 |
