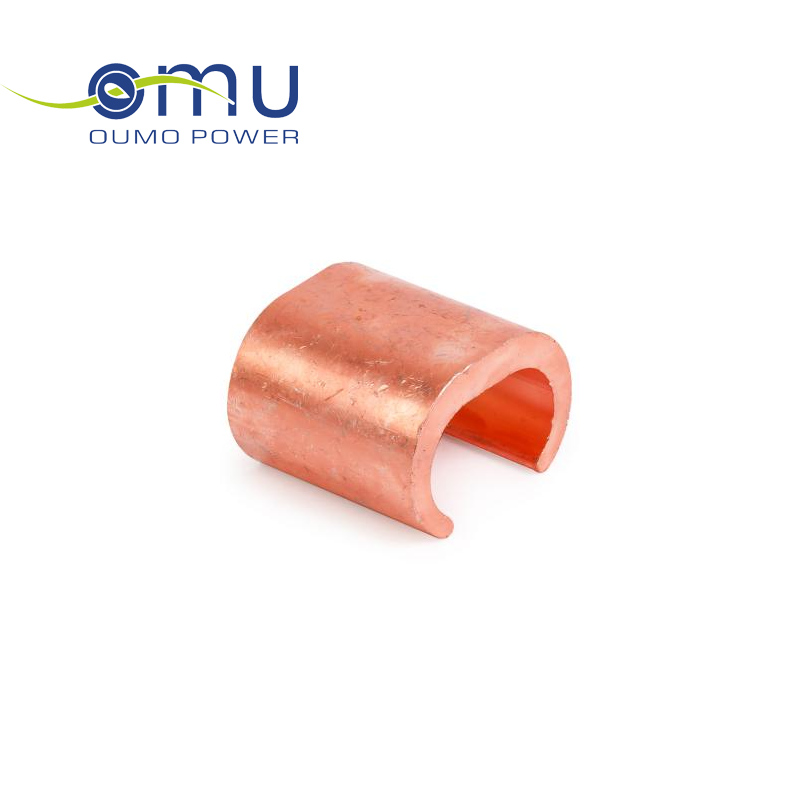

Special Crimp clamp CCT
- Product parameters
- Return
Structure Feature:
1. Made of pure electrolytic copper
2. High withstand to corrosion in or above the ground
3. High capacity to flow fault-currents
4. Available for copper conductors
|
Type |
Conductor(mm²） |
Dimensions(mm) |
||||
|
A |
H |
L |
B |
C |
||
|
CCT-16 |
14.5-16 |
12 |
7.4 |
13 |
1.7 |
7.5 |
|
CCT-20 |
16.5-20 |
13 |
9.7 |
13 |
1.8 |
7 |
|
CCT-26 |
21-26 |
14.7 |
10.6 |
16 |
2.3 |
7 |
|
CCT-44 |
27-44 |
18.5 |
14 |
19 |
3.7 |
8.8 |
|
CCT-60 |
45-60 |
21 |
14.8 |
20 |
4 |
10.8 |
|
CCT-76 |
61-76 |
24.5 |
18 |
21 |
5.3 |
12 |
|
CCT-98 |
77-98 |
28 |
18.8 |
23 |
5.2 |
14 |
|
CCT-122 |
99-122 |
30 |
21 |
26 |
5.5 |
14 |
|
CCT-154 |
123-154 |
34 |
24 |
28 |
6.5 |
18.5 |
|
CCT-190 |
155-190 |
36.5 |
24.5 |
34 |
5.4 |
17.2 |
|
CCT-240 |
191-240 |
40 |
28 |
38 |
6.7 |
19.5 |
|
CCT-288 |
141-288 |
44 |
31 |
44 |
7 |
22.8 |
|
CCT-365 |
289-365 |
47 |
33.5 |
48 |
6.5 |
24 |
|
CCT-450 |
366-450 |
57 |
41 |
60 |
10 |
28 |
|
CCT-560 |
451-560 |
62 |
45 |
62 |
11 |
31.5 |
|
CCT-700 |
561-700 |
68 |
50 |
67 |
12 |
34.5 |
