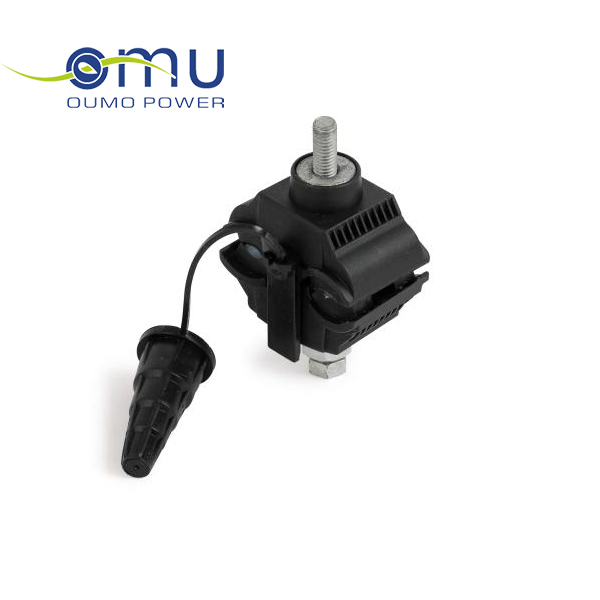

Insulation piercing connector JBC
JBC insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system,building electrical system and street lighting system.Installation of JBC can be easily done by tightening bolts to force teeth penetrate insulation of main line and tap line simultaneously.Stripping of insulation is avoided for both lines.
- Product parameters
- Return
Material:
Insulation material made of weather resistant glass fiber reinforced polymer.
Contact teeth made of tinned brass or copper or aluminum.
Feature:
Had passed 6kV test under water for 1 Min.
Standard:EN 50483-4,NF C33-020,NF C33-004
|
Type |
Main line section
(mm²)
|
Branch line section
(mm²)
|
Bolt |
|
JBC-0 |
25-70 |
6-35 |
1 |
|
JBC-1 |
35-70 |
6-35 |
1 |
|
JBC-2 |
35-150 |
35-150 |
1 |
|
JBC-3 |
50-240 |
50-150 |
2 |
