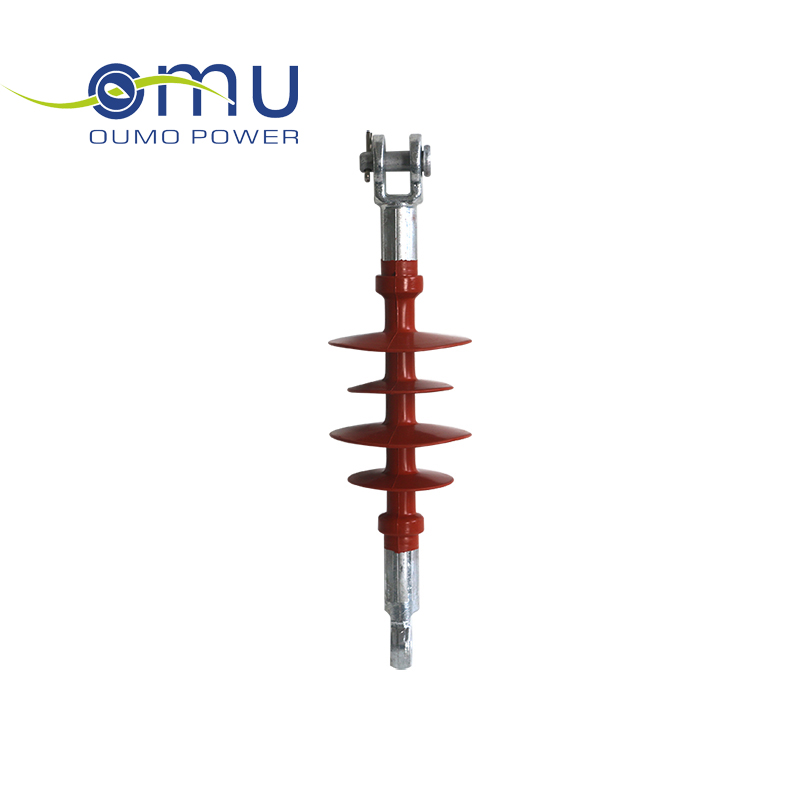

Model Composite Suspention Insulator FXBW-11~15/70CT
- Product parameters
- Return
Model No: FXBW-11~15/70CT
Height : 365± 10 mm
End fittings: Clevis & Tounge
Min Dry Arcing Distance: 200mm
Mini Creepage Distance: 450mm
Diameter of the rod: 18mm
Number of sheds: 4pcs
Diameter of sheds: 115/85mm
Specified Mechanical Load: 70kN
Routine Test Load: 35kN
Rated Voltage:11~15kV
Lighting Impulse withstand voltage: 105kV
Power Frequency withstand voltage: 55kV
