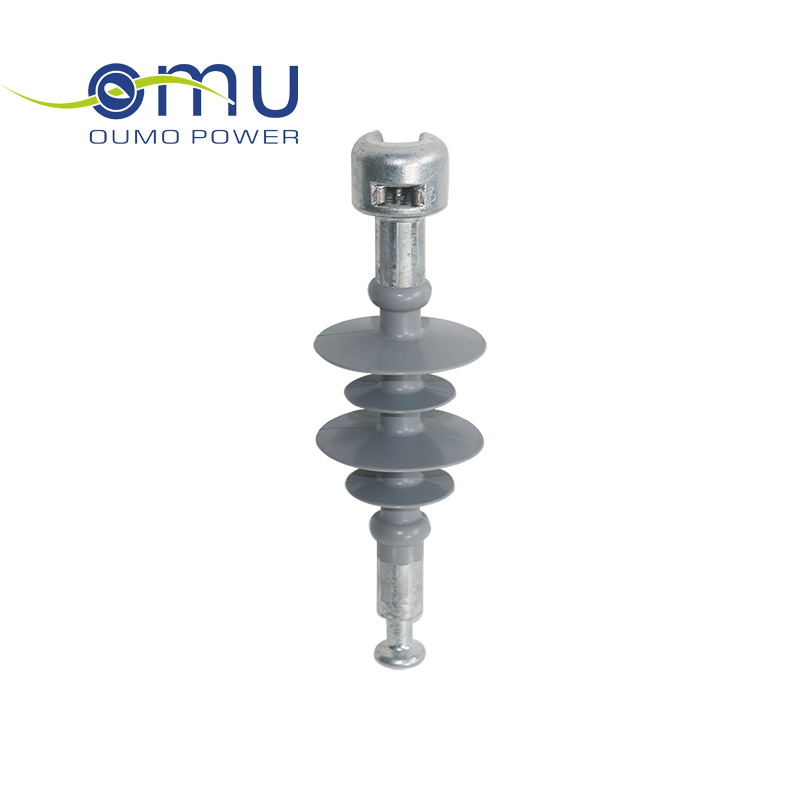

Model No: FXBW-11~15/70

Height : 310± 10 mm

End fittings: Ball & Socket

Min Dry Arcing Distance: 190mm

Mini Creepage Distance: 360mm

Diameter of the rod: 18mm

Number of sheds: 4pcs

Diameter of sheds: 100/65mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage:11~15kV

Lighting Impulse withstand voltage: 105kV

Power Frequency withstand voltage: 55kV
