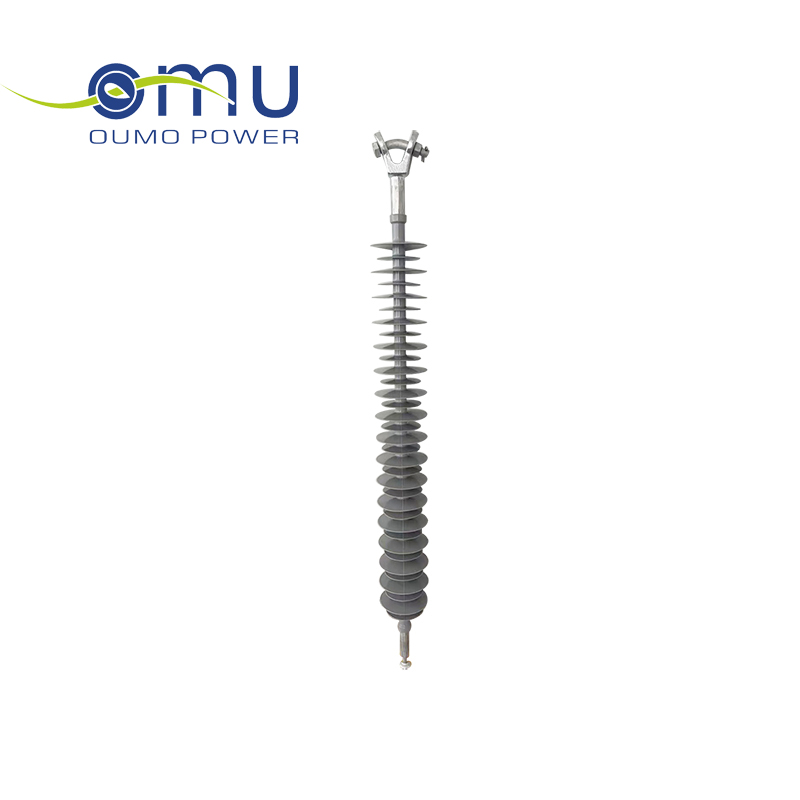

Model Composite Tension Insulator FXBW-138-160YQ

Whatsapp: +86-18357732119

PDF Download

Model No:FXBW-138-160YQ

Height : 1400± 30 mm

End fittings: Ball & Y Clevis

Min Dry Arcing Distance: 1125mm

Mini Creepage Distance: 3800mm

Diameter of the rod: 24mm

Number of sheds: 30pcs

Diameter of sheds: 150/115mm

Specified Mechanical Load: 160kN

Routine Test Load: 80kN

Rated Voltage: 115kV

Lighting Impulse withstand voltage: 550kV

Power Frequency withstand voltage: 275kV
