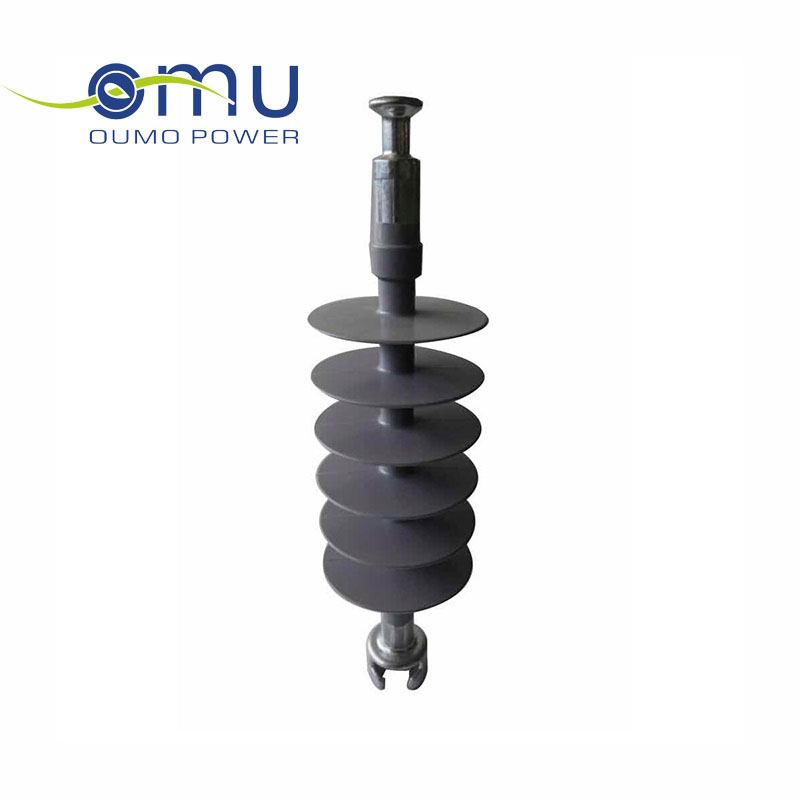

Composite Tension Insulator FXB-20~27-40(70)WQ1

Whatsapp: +86-18357732119

PDF Download

Model No:FXB-20~27-40(70)WQ1

Height : 445± 10 mm

End fittings: Ball & Socket

Min Dry Arcing Distance: 320mm

Mini Creepage Distance: 815mm

Diameter of the rod: 18mm

Number of sheds: 6pcs

Diameter of sheds: 120mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 20~27kV

Lighting Impulse withstand voltage: 135kV

Power Frequency withstand voltage: 65kV
