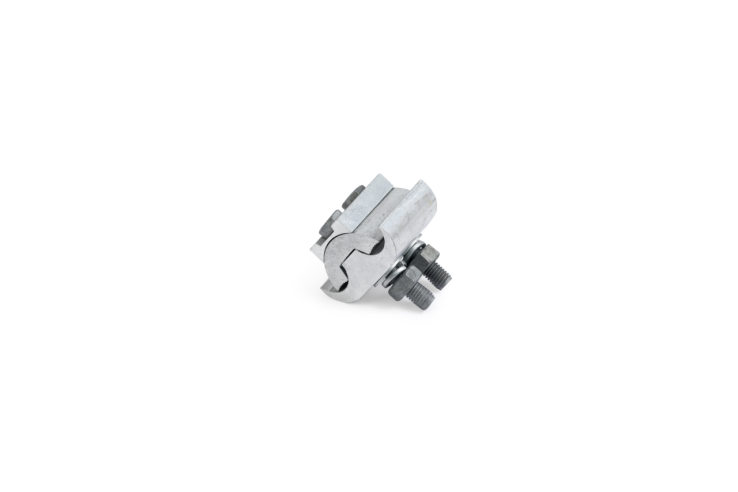

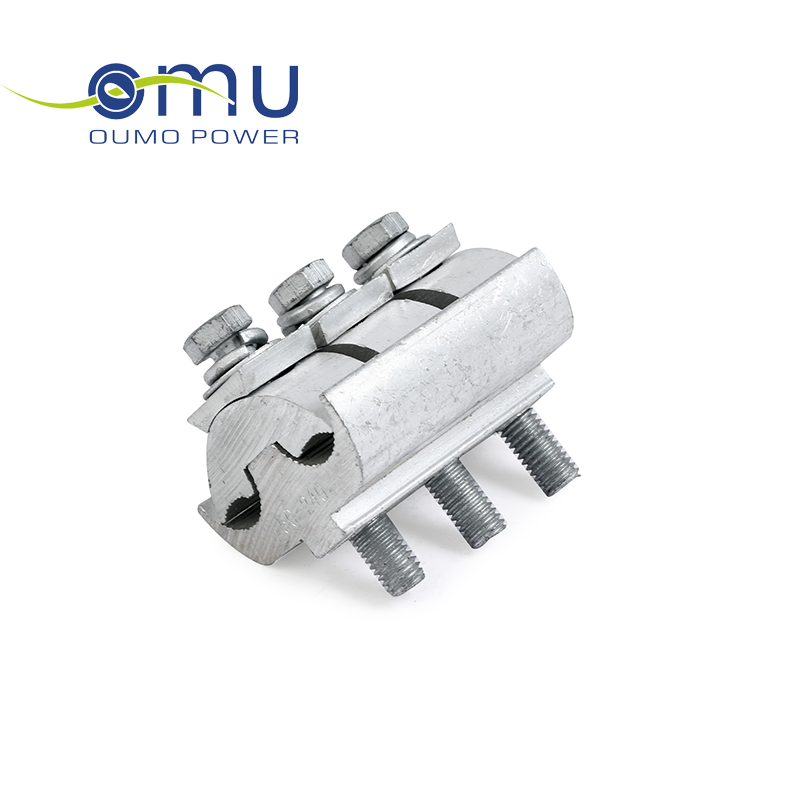

Aluminum PG Clamp JBL
- Product parameters
- Return
Structure Feature:
1.Select oxidize-resistance aluminium alloy.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.

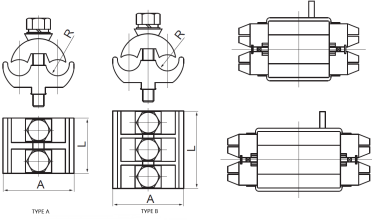

JBL-H
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBL-H-1A |
16-70 |
2*M8*50 |
|
JBL-H-2A |
16-120 |
2*M10*55 |
|
JBL-H-3A |
50-240 |
2*M10*70 |
|
JBL-H-2B |
16-120 |
3*M10*55 |
|
JBL-H-3B |
50-240 |
3*M10*70 |
|
Notice:A type is 2 bolts,B type is 3 bolts. |
||
JBL-B
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBL-B-2A |
16-120 |
2*M10*55 |
|
JBL-B-3A |
50-240 |
2*M10*70 |
|
Notice:A type is 2 bolts. |
||
