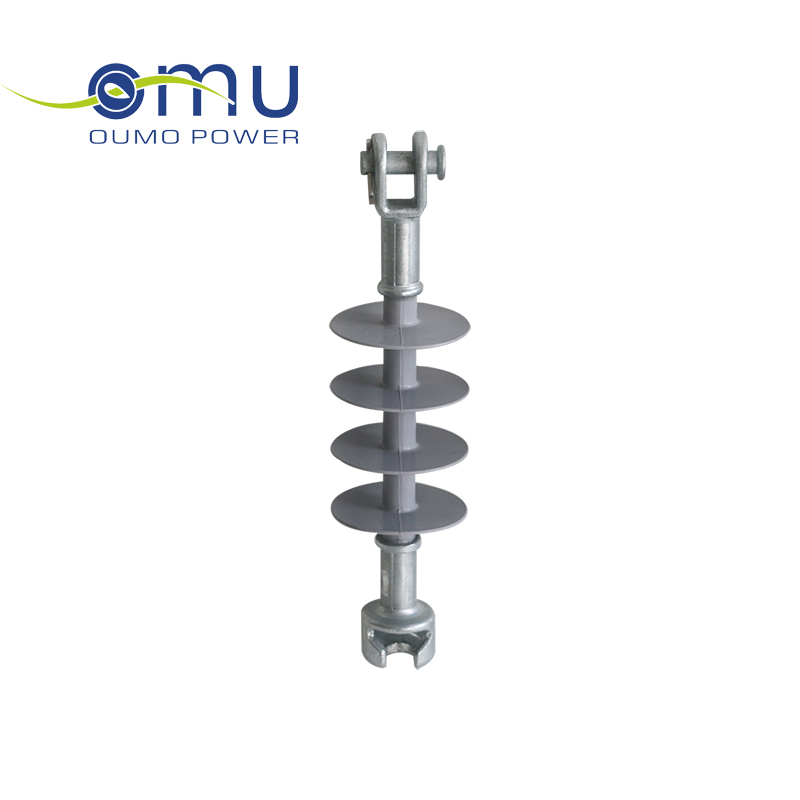

Model Composite Suspention Insulator FXB-11~15/70WC
- Product parameters
- Return
Model No: FXB-11~15/70WC
Height : 365± 10 mm
End fittings: Clevis & Socket
Min Dry Arcing Distance: 200mm
Mini Creepage Distance: 450mm
Diameter of the rod: 17mm
Number of sheds: 4pcs
Diameter of sheds: 98mm
Specified Mechanical Load: 70kN
Routine Test Load: 35kN
Rated Voltage:11~15kV
Lighting Impulse withstand voltage: 105kV
Power Frequency withstand voltage: 55kV
