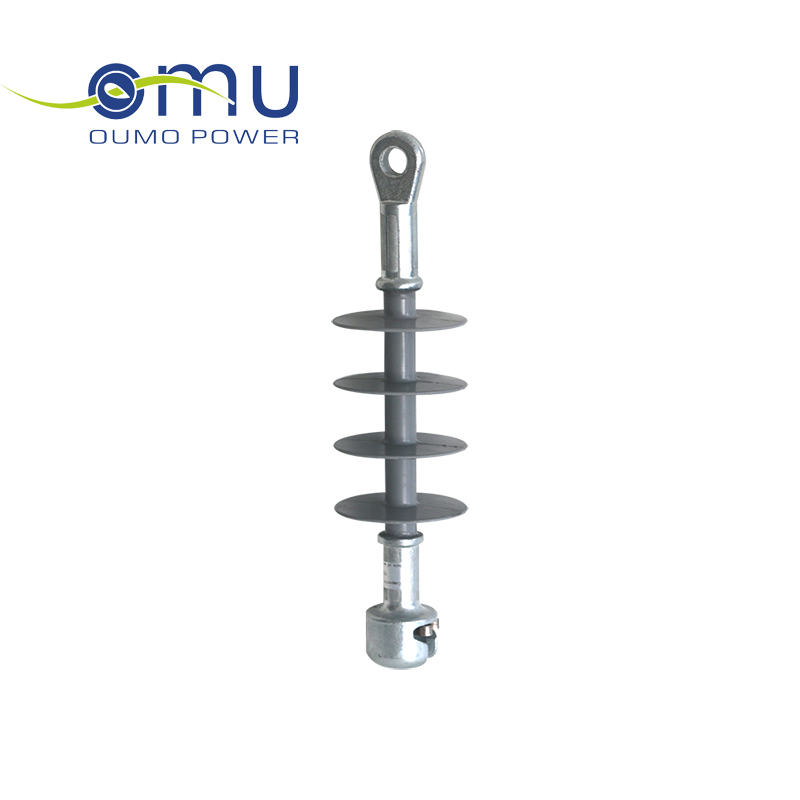

Model Composite Suspention Insulator FXB-11~15/70WT

Whatsapp: +86-18357732119

PDF Download

Model No: FXB-11~15/70WT

Height : 365± 10 mm

End fittings: Socket & Tounge

Min Dry Arcing Distance: 200mm

Mini Creepage Distance: 450mm

Diameter of the rod: 17mm

Number of sheds: 4pcs

Diameter of sheds: 98mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage:11~15kV

Lighting Impulse withstand voltage: 105kV

Power Frequency withstand voltage: 55kV
