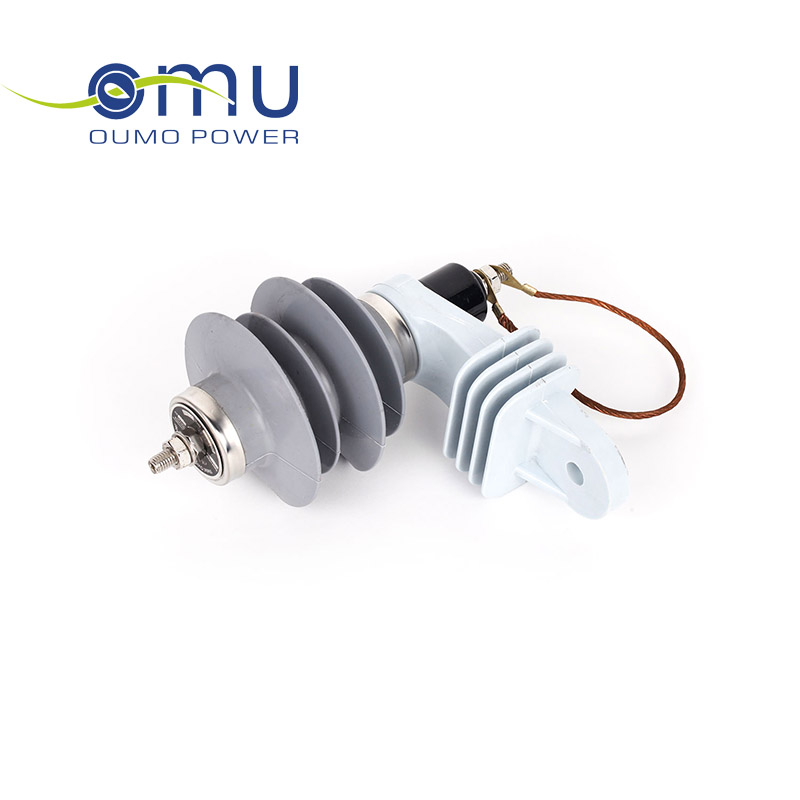

Surge Arrester 11~12KV 10KA

Surge Arrester 11~12KV 10KA HY10W-11, HY10W-12

Whatsapp: +86-18357732119

Model: HY10W-11, HY10W-12

Rated Voltage: 11KV, 12KV

Maximum Continuous Operating Voltage (MCOV): 9.40 KV, 10.2KV

1/4μs Lighting Current Impulse: 40.0KV, 42.2KV

8/20μs Lighting Current Impulse: 33KV, 36KV

30/60μs Switching Current Impulse: 30.0KV, 27.0KV

2000μs Rectangular Wave Current Impulse Withstand : 250A,250A

4/10μs High Current Impulse Withstand: 100KA,100KA
