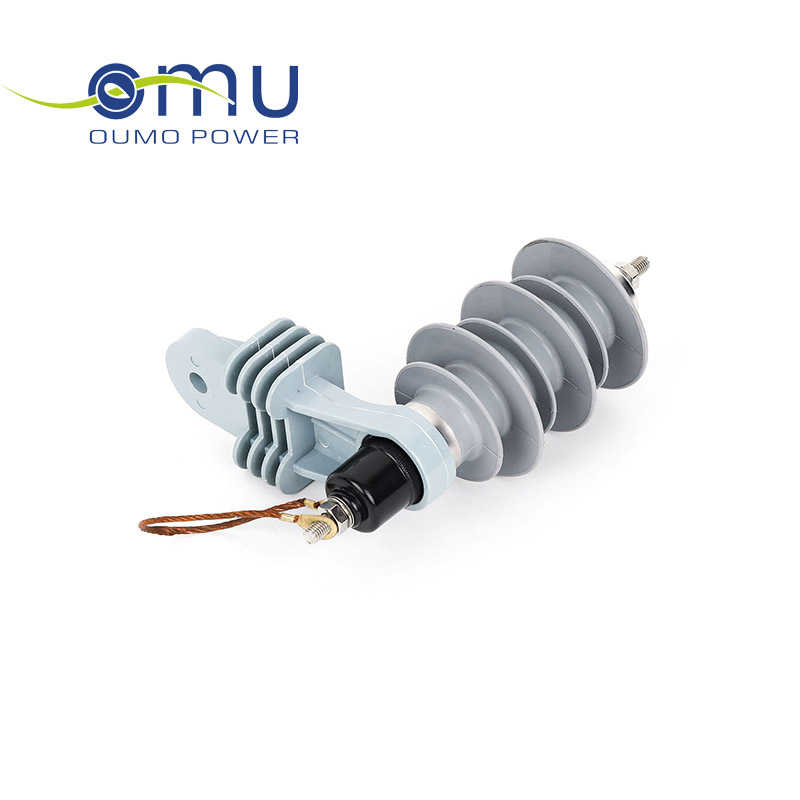

Model: HY5W-11, HY5W-12,HY5W-15

Rated Voltage: 11KV, 12KV,15KV

Maximum Continuous Operating Voltage (MCOV): 9.40 KV, 10.2KV,12.7KV

1/4μs Lighting Current Impulse: 40.0KV, 42.2KV,51.0KV

8/20μs Lighting Current Impulse: 33KV, 36KV,45KV

30/60μs Switching Current Impulse: 30.0KV, 27.0KV,38.5KV

2000μs Rectangular Wave Current Impulse Withstand : 150A,150A,150A

4/10μs High Current Impulse Withstand: 65KA,65KA,65KA
