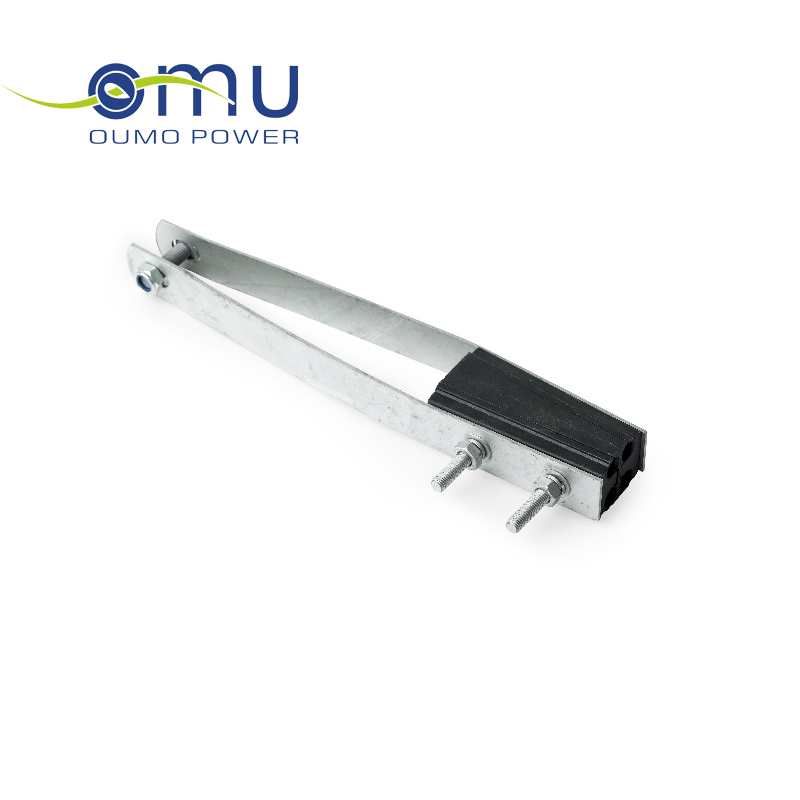

Dead end clamp (tension clamp or anchor clamp) PAT
PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables.These clamps are used for anchoring and tightening insulated conductors.
- Product parameters
- Return
Features:
1. Iron braces are made of steel strap with surface galcanized.
2. Wedges are made of weather resistant and anti-UV material with high mechanical strength.
3. Equipped with bolts.
4. Strong springs between wedges facilitate the insertion of conductors.
5. No loose parts could fall off during installation.
|
Type |
Cross section(mm²） |
Messenger DIA.(mm) |
Breaking load |
|
PAT 435/50 |
4*(35-50) |
11-14 |
15kN |
|
PAT 450/120 |
4*(50-120) |
11-17 |
20kN |
|
PAT 470/95 |
4*(70-95) |
14-16 |
15kN |
