PRODUCT DISPLAY

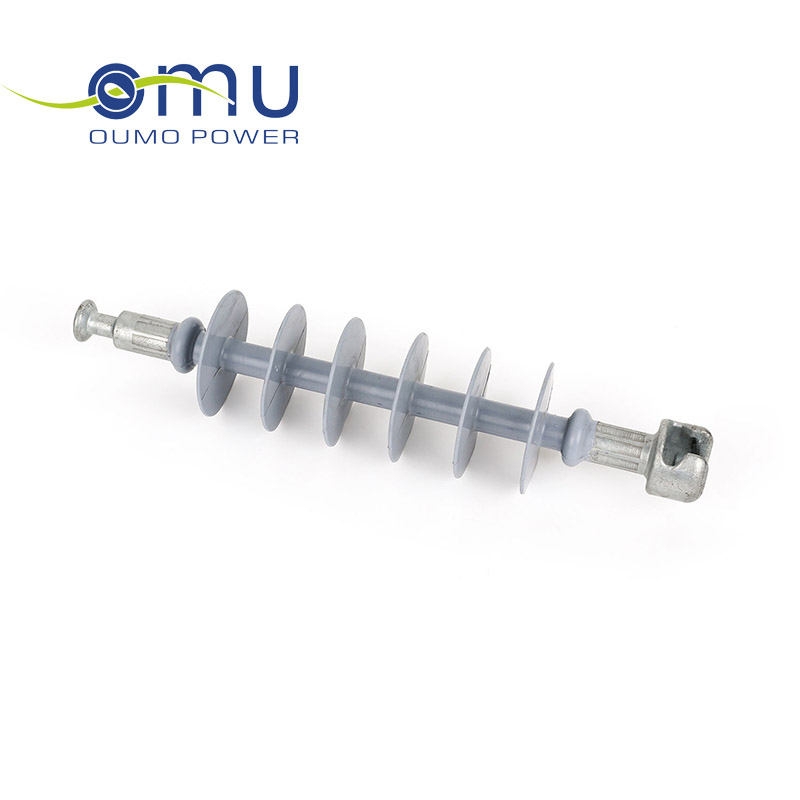

Model Composite Suspention Insulator FXB-20~27/70WQ
- Product parameters
- Return
Model No: FXB-20~27/70WQ
Height : 460± 10 mm
End fittings: Ball & Socket
Min Dry Arcing Distance: 315mm
Mini Creepage Distance: 675mm
Diameter of the rod: 17mm
Number of sheds: 6pcs
Diameter of sheds: 98mm
Specified Mechanical Load: 70kN
Routine Test Load: 35kN
Rated Voltage: 20~27kV
Lighting Impulse withstand voltage: 135kV
Power Frequency withstand voltage: 65kV
