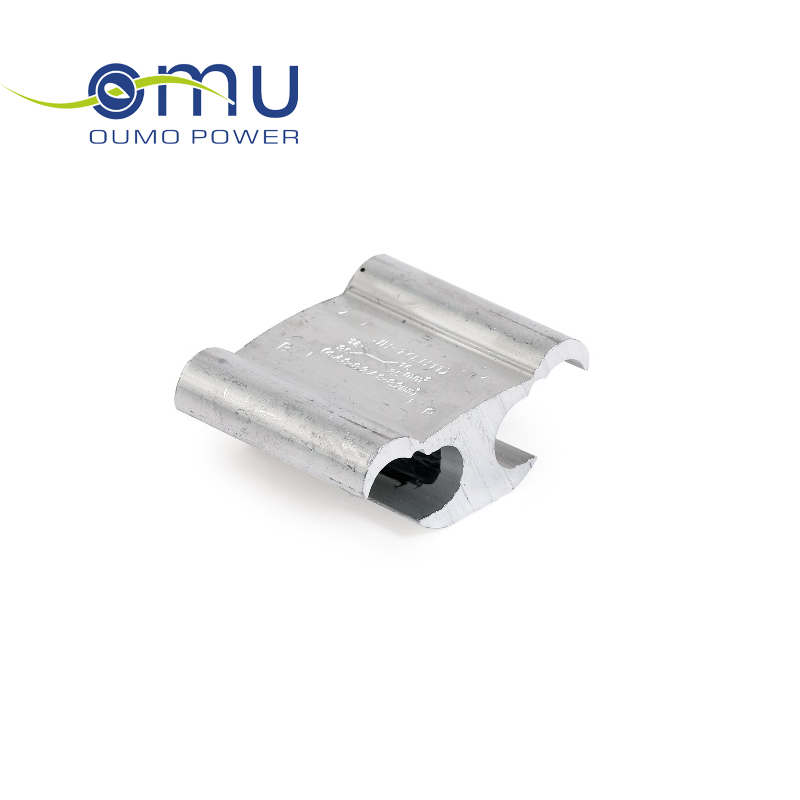

Special Aluminum tap clamp H
- Product parameters
- Return
Structure Feature:
Tap grooves function independently of each other.Use of one tap is required.Balance may be used of left empty.
|
Type |
Hole 1(mm²） |
D1(mm） |
Hole 2(mm²） |
D2(mm） |
A(mm) |
B(mm) |
C(mm) |
H(mm) |
L(mm) |
|
AS-H1 |
16-35 |
4.8-8.2 |
16-35 |
4.8-8.2 |
7.1 |
24.3 |
41 |
15 |
38 |
|
AS-H2 |
50-95 |
8.3-14.5 |
16-50 |
4.8-9.5 |
13 |
36.6 |
60 |
22.5 |
48 |
|
AS-H3 |
95-95 |
10.0-14.5 |
50-95 |
10.0-14.5 |
5.4 |
36.4 |
63 |
22.3 |
64 |
|
AS-H4 |
95-240 |
13.0-22.5 |
16-70 |
4.8-11.5 |
14.3 |
50.5 |
80.4 |
30 |
51 |
|
AS-H5 |
95-240 |
13.0-22.5 |
70-150 |
11.6-16.0 |
9.4 |
50 |
83.5 |
32 |
51 |
|
AS-H6 |
150-240 |
16.2-22.5 |
150-240 |
16.2-22.5 |
5.1 |
50.5 |
90.6 |
30.3 |
89 |
