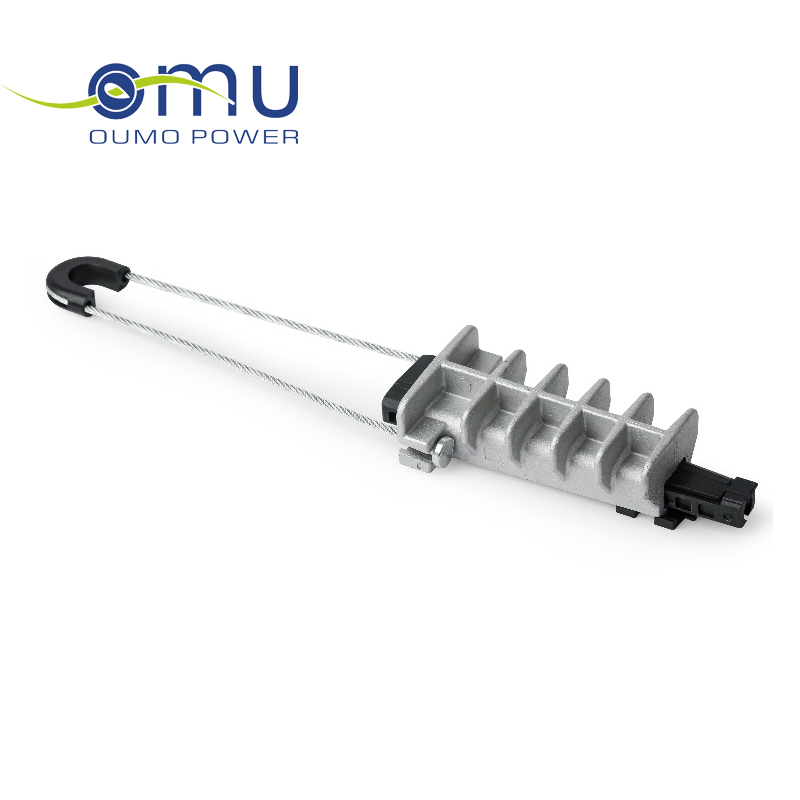

Dead end clamp (tension clamp or anchor clamp) PAL
PAL tension clamp are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.
- Product parameters
- Return
Features:
1.Body is casted of corrosion resistant aluminum alloy with high mechanical strength.
2.Metal support is made of stainless steel or steel.
3.Wedges are made of weather resistant and anti-UV material with high mechanical strength.
1.Body is casted of corrosion resistant aluminum alloy with high mechanical strength.
2.Metal support is made of stainless steel or steel.
3.Wedges are made of weather resistant and anti-UV material with high mechanical strength.
Standard:EN 50483-3,NF C33-041
|
Type |
Cross section(mm²） |
Breaking load |
|
PAL35-1000 |
25-35 |
10kN |
|
PAL50-1500 |
50-70 |
15kN |
|
PAL70-2000 |
54-70 |
18kN |
|
PAL95-2000 |
70-95 |
18kN |
Notice:We provide a variety of bracket for Anchoring Assemblies.Specifications of bracket see anchor bracket.
