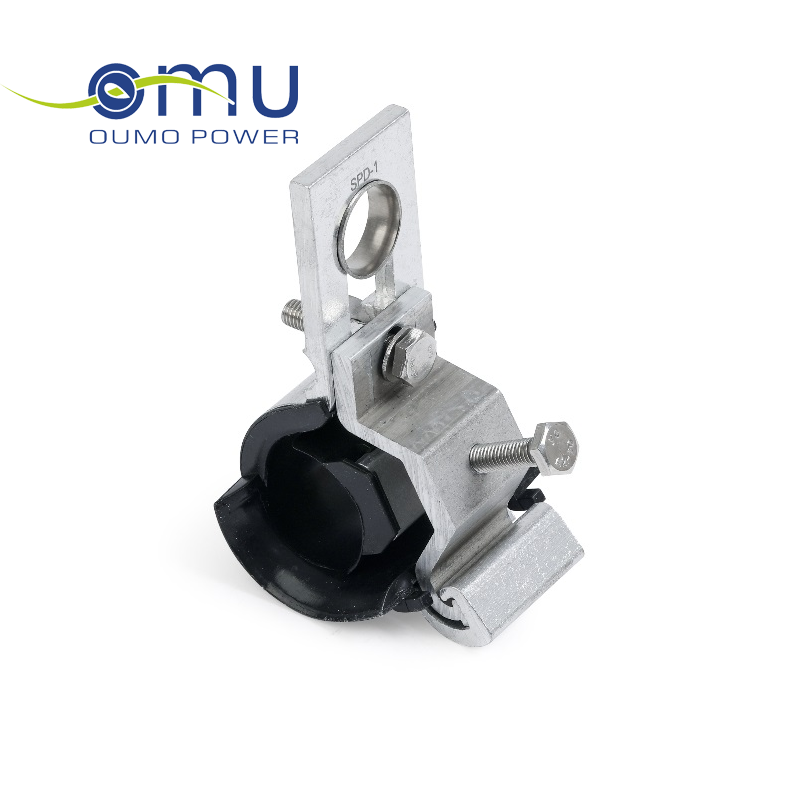

Suspension Clamp SPD
SPD suspension clamps are designed for installation and suspension of four-core self-supporting low voltage aerial cables on poles or walls.For straight lines and angles up to 90°.
- Product parameters
- Return
Features:
1. Clamp is made of corrosion resistant aluminum alloy with high mechanical strength.
2. Plastic part is made of weather resistant and anti-UV material.
3. Shear head bolt and wing nut allow no additional tool during installation.
4. Constant installation torque is convenient for installation without any damage to cable insulation layer.
5. No loose parts could fall off during installation.
Standard:EN 50483-2
|
TYPE |
Cross section (mm²） |
|
SPD1 |
2-4×(25-50)≤60°/2-4×(25-120)≤30° |
|
SPD2 |
2-4×(25-120)≤30° |
|
SPD3 |
2-4×(25-120)≤90° |
