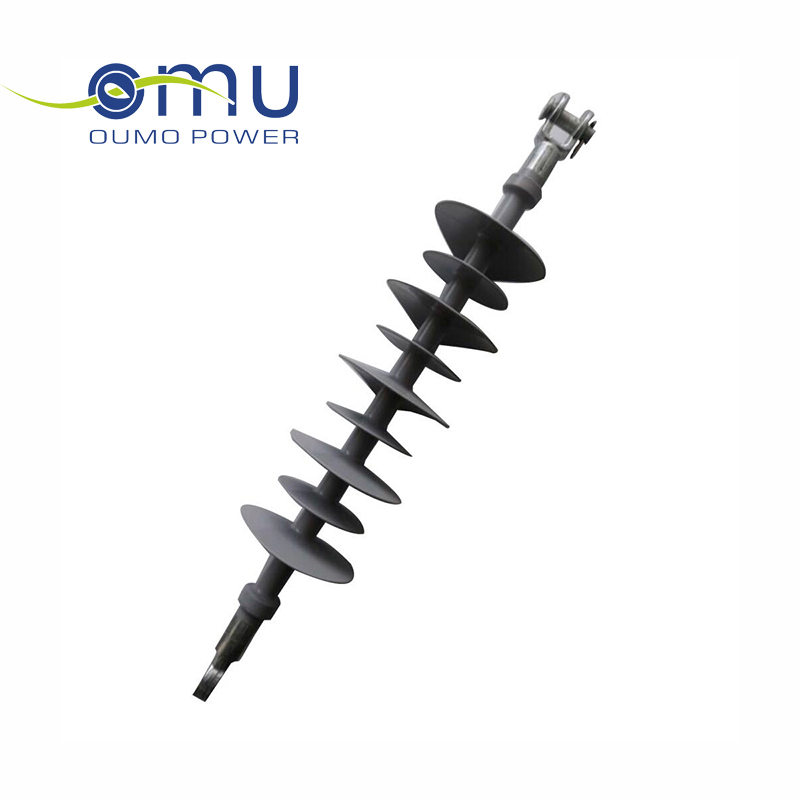

Model Composite Tension Insulator FXBW-33~36-70CT

Whatsapp: +86-18357732119

PDF Download

Model No:FXBW-33~36-70CT

Height : 650± 10 mm

End fittings: Clevis & Tongue

Min Dry Arcing Distance: 460mm

Mini Creepage Distance: 1200mm

Diameter of the rod: 18mm

Number of sheds: 9pcs

Diameter of sheds: 130/100mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 230kV

Power Frequency withstand voltage: 95kV
