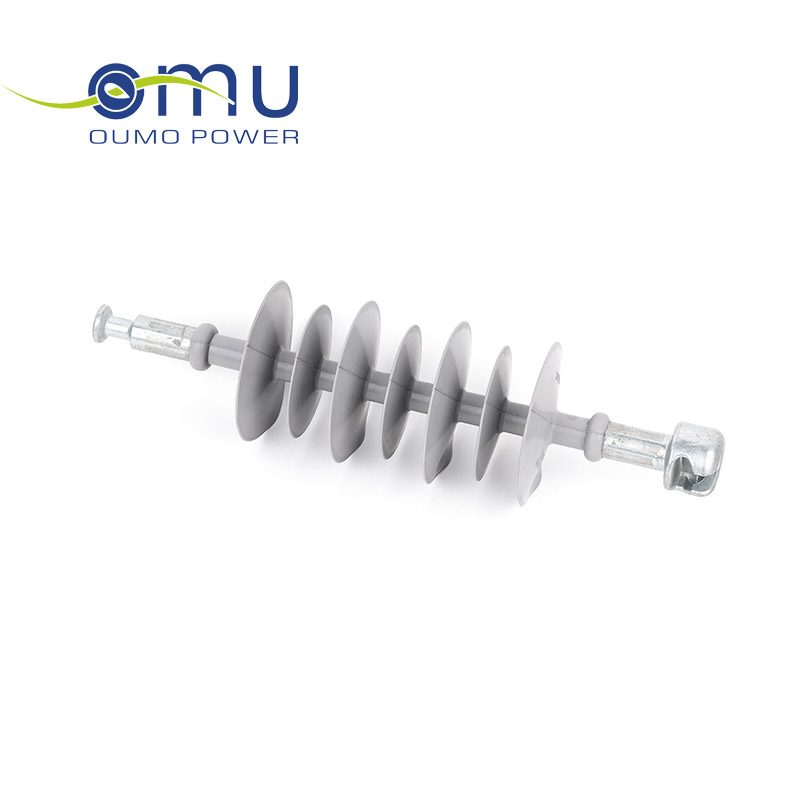

Model Composite Tension Insulator FXBW-33~36/70WQ

Whatsapp: +86-18357732119

PDF Download

Model No:FXBW-33~36/70WQ

Height : 495± 10 mm

End fittings: Ball & Socket

Min Dry Arcing Distance: 350mm

Mini Creepage Distance: 900mm

Diameter of the rod: 18mm

Number of sheds: 7pcs

Diameter of sheds: 132/110mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 230kV

Power Frequency withstand voltage: 95kV
