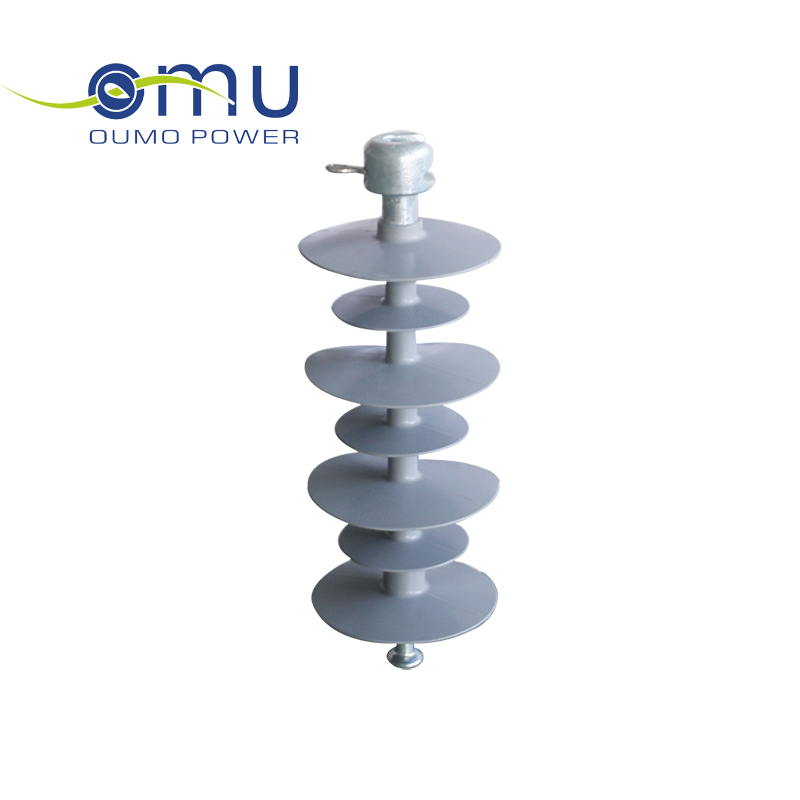

Model Composite Tension Insulator FXBW-33~36-70WQ1

Whatsapp: +86-18357732119

PDF Download

Model No:FXBW-33~36-70WQ1

Height : 440± 15 mm

End fittings: Ball & Socket

Min Dry Arcing Distance: 445mm

Mini Creepage Distance: 1060mm

Diameter of the rod: 18mm

Number of sheds: 7pcs

Diameter of sheds: 160/110mm

Specified Mechanical Load: 70kN

Routine Test Load: 35kN

Rated Voltage: 33~36kV

Lighting Impulse withstand voltage: 230kV

Power Frequency withstand voltage: 95kV
