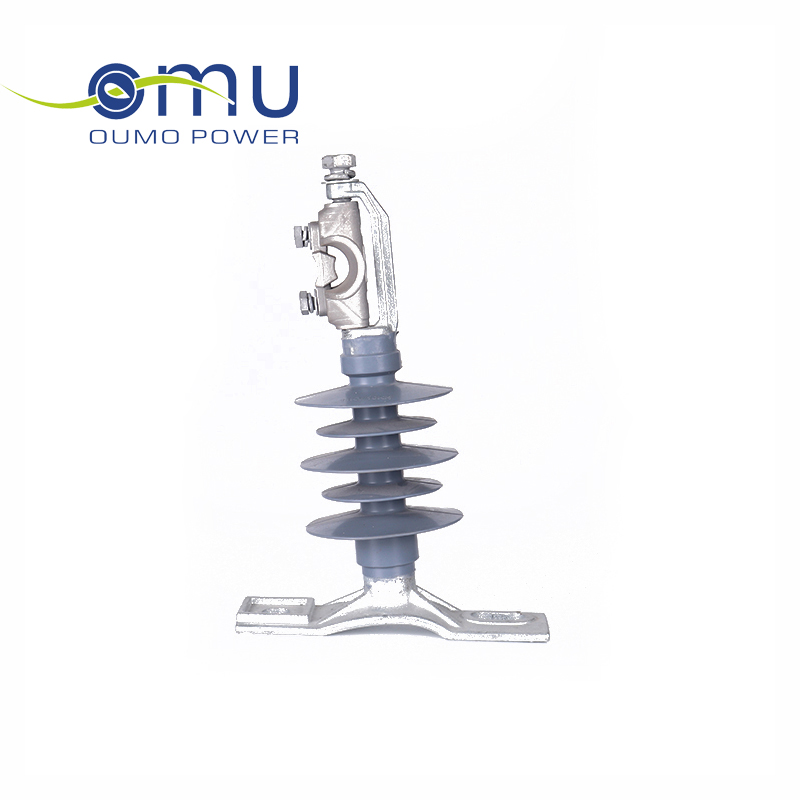

Model No:FZSW1-11~15-10

Height : 285± 10 mm

Min Dry Arcing Distance: 180mm

Mini Creepage Distance: 500mm

Diameter of the rod: 30mm

Number of sheds: 5pcs

Diameter of sheds: 125/95mm

Rated Bending Load: 10kN

Rated Voltage: 11~15kV

Lighting Impulse withstand voltage: 150kV

Power Frequency withstand voltage: 80kV
