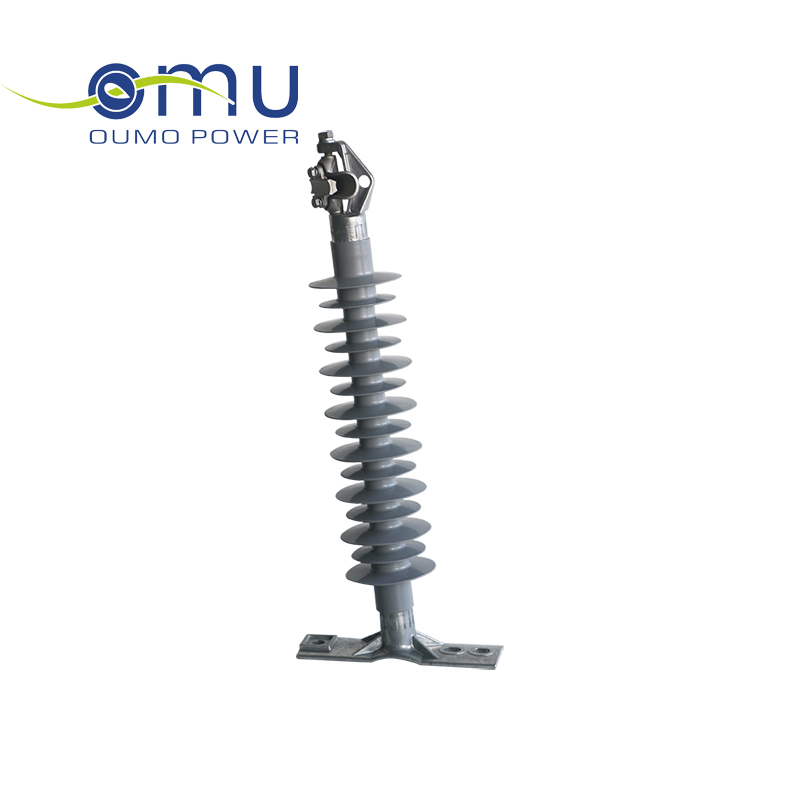

Model No:FZSW-66~72.5-10

Height : 850± 10 mm

Min Dry Arcing Distance: 700mm

Mini Creepage Distance: 1830mm

Diameter of the rod: 50mm

Number of sheds: 15pcs

Diameter of sheds: 165/135mm

Rated Bending Load: 10kN

Rated Voltage: 66~72.5kV

Lighting Impulse withstand voltage: 410kV

Power Frequency withstand voltage: 230kV
