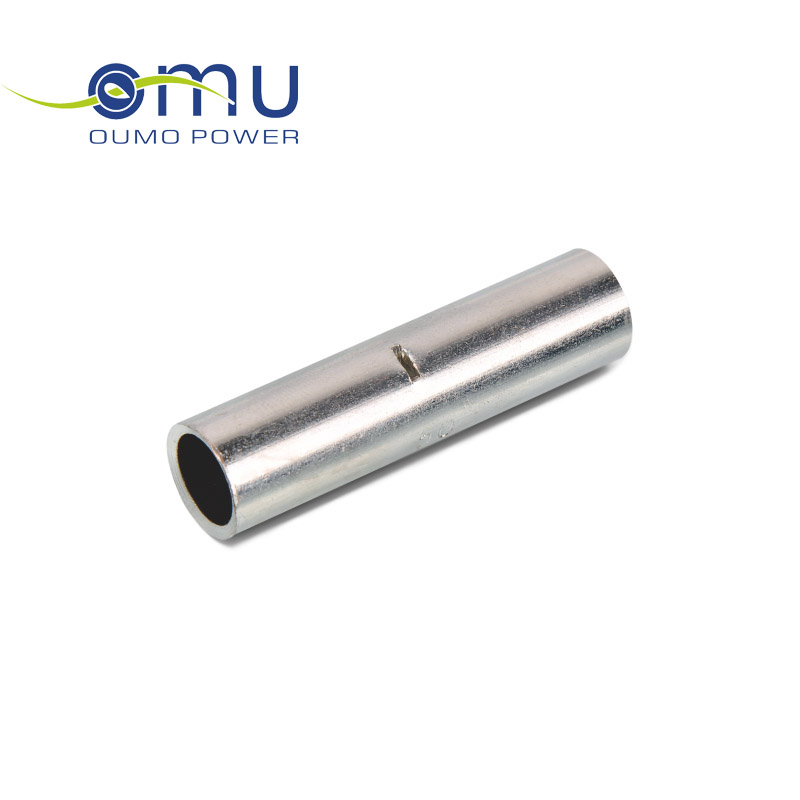

Copper Connection Tubes GTY
- Product parameters
- Return
|
Specifications |
Dimensions(mm) |
Code No. |
||
|
D |
d |
L |
||
|
GTY-1.5 |
3.5 |
2.1 |
20 |
OMU-GTY-001 |
|
GTY-2.5 |
4 |
2.5 |
20 |
OMU-GTY-002 |
|
GTY-4 |
4.8 |
3.4 |
20 |
OMU-GTY-003 |
|
GTY-6 |
5.5 |
4.1 |
25 |
OMU-GTY-004 |
|
GTY-10 |
6.5 |
5.1 |
30 |
OMU-GTY-004 |
|
GTY-16 |
8 |
6.4 |
35 |
OMU-GTY-006 |
|
GTY-25 |
9 |
7 |
40 |
OMU-GTY-007 |
|
GTY-35 |
10.5 |
8.5 |
45 |
OMU-GTY-008 |
|
GTY-50 |
12 |
9.8 |
50 |
OMU-GTY-009 |
|
GTY-70 |
14.5 |
11.9 |
55 |
OMU-GTY-010 |
|
GTY-95 |
16 |
13 |
55 |
OMU-GTY-011 |
|
GTY-120 |
19 |
15.4 |
60 |
OMU-GTY-012 |
|
GTY-150 |
20.5 |
16.7 |
65 |
OMU-GTY-013 |
|
GTY-185 |
23.5 |
19.3 |
70 |
OMU-GTY-014 |
|
GTY-240 |
26 |
21.2 |
75 |
OMU-GTY-015 |
|
GTY-300 |
30 |
24 |
80 |
OMU-GTY-016 |
|
GTY-400 |
34 |
27.6 |
85 |
OMU-GTY-017 |
|
GTY-500 |
38 |
31.6 |
90 |
OMU-GTY-018 |
|
GTY-630 |
45 |
37.6 |
95 |
OMU-GTY-019 |
